Shuffle¶

Shuffle is an open-source security orchestration, automation, and response (SOAR) platform. It connects security tools and APIs into visible, repeatable workflows while retaining the inputs, decisions, actions, and results needed for review.

What Shuffle does¶

A Shuffle workflow receives an event through a trigger, validates and enriches the data, chooses a branch, pauses when human approval is required, and records the result of any action. This guide preserves the original Cyber Defence Kit proof-of-concept build and screenshots while presenting them as a structured learning path.

Watch the Shuffle proof-of-concept overview on YouTube

Choose your journey¶

You do not need to complete every section. Choose the journey that matches your environment and intended outcome:

01Install onlineDeploy Shuffle and its container prerequisites with internet access.Complete when the interface and supporting services are healthy.Intermediate · Linux host · 60–120 min

02Install offlinePrepare images, repositories, and packages for an isolated environment.Complete when the transferred deployment starts without internet access.Advanced · Preparation + lab hosts · 2–4 hours

03Learn the workflow canvasBuild the introductory automation and understand its data path.Complete when the first trigger-to-action path succeeds.Beginner · Working Shuffle · 45–75 min

04Connect the response stackIntegrate Wazuh, Shuffle, TheHive, and supporting actions.Complete when the controlled alert creates the expected downstream result.Advanced · Multi-VM lab · 2–4 hours

05Extend and validateBuild the second workflow and verify its response outcomes.Complete when positive, negative, failure, and rollback checks are recorded.Advanced · Working integrations · 90–150 min

If you are building the complete lab, review Before you begin and the proof-of-concept lab setup before completing the journeys in sequence.

Automation can affect real systems

Use synthetic indicators, least-privilege credentials, approval gates, and reversible actions. Never connect a training workflow to production controls.

How an alert moves through this PoC¶

1 Trigger→2 Enrich→3 Decide→4 Approve→5 Act & record

Troubleshoot from left to right. Confirm the trigger received a complete event before checking enrichment, branch conditions, approval state, action results, and the final audit record.

Before you begin¶

Version and edition checks¶

The screenshots record the original PoC and may differ from a current Shuffle release. Record the exact repository revision and container image tags used in your lab before making changes.

Component	PoC baseline	Check before rebuilding
Shuffle	Version not recorded in the original notes	Select and record a supported release or commit; keep frontend and backend versions aligned
Shuffle host	Ubuntu 22.04 LTS	Confirm current CPU, memory, disk, container, and edition requirements
Wazuh server	CentOS Stream 9	Confirm the current Shuffle integration syntax and alert filter
TheHive	Version not recorded in the original notes	Create a new least-privilege service account and API key for the lab

Current releases may behave differently

Shuffle v2.1.1 and later enforce distinctions between open-source and enterprise capabilities. Confirm that every application, trigger, and action used by a workflow is available in the edition you deploy.

You will need:

an isolated, authorised lab and a recovery point for every system;
a supported Linux host with Docker Compose and adequate resources;
scoped Wazuh, TheHive, and optional VirusTotal credentials;
synthetic alerts and reserved example addresses for testing; and
a written rollback method before enabling a response action.

Troubleshooting shortcuts¶

Problem	Start here
Shuffle does not open	Verify the online installation and container health
The isolated deployment cannot pull or start an image	Review the offline manifest and image transfer
Wazuh alerts do not reach the webhook	Verify Workflow Zero from Wazuh log to Shuffle execution
TheHive or VirusTotal returns an authentication error	Validate each Workflow One application independently
A response repeats or cannot be reversed	Test failure, duplicate, and rollback handling

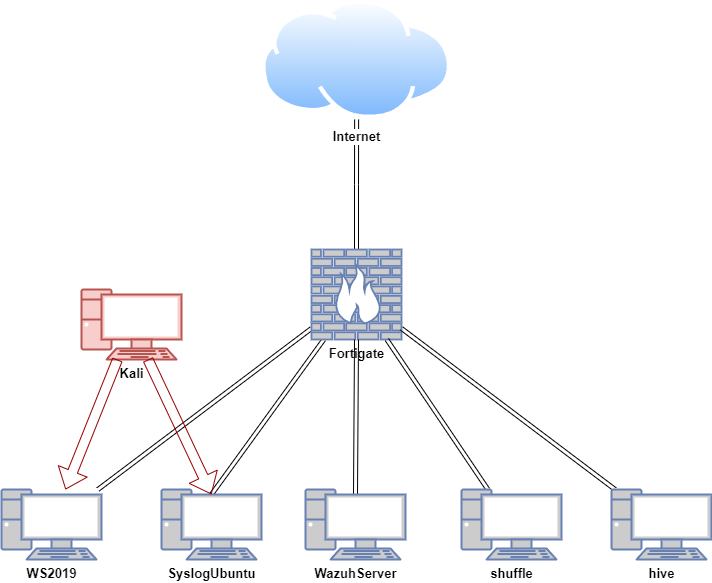

Lab Setup for Proof of Concept¶

In this proof of concept, Shuffle is installed on an Ubuntu VM. Automated workflows were created using Shuffle, Wazuh, and TheHive. An attack simulation was conducted on the Windows and Ubuntu hosts in a safe and controlled environment.

Host	OS	Role	IP Address
Fortigate	Fortios 7.6.0	Firewall/Router	192.168.1.111 (WAN) / 10.0.0.1 (LAN)
shuffle	Ubuntu 22.04 LTS	Shuffle (SOAR)	10.0.0.28
WazuhServer	Centos Stream 9	Wazuh server (SIEM server)	10.0.0.20
hive	Ubuntu 22.04 LTS	TheHive (IR)	10.0.0.40
WS2019	Windows Server 2019	Wazuh agent (SIEM client)	10.0.0.24
SyslogUbuntu	Ubuntu 22.04 LTS	Wazuh agent, rsyslog server	10.0.0.26
Kali	Kali Linux 2024.2	Attacker machine	192.168.1.161, 10.0.0.29

Continue with a journey¶

Install ShuffleChoose the connected or isolated deployment route.Build the first workflowLearn triggers, data flow, and action results.Go hands-onUse the Interactive Lab or build the complete workflow.
