Snort

Build a Snort 3 network-detection lab, validate local and community rules, analyse saved traffic, and introduce inline prevention only after defining a safe rollback path.

What Snort does

Snort is an open-source network intrusion detection and prevention system maintained by Cisco. It monitors network traffic in real time and combines protocol analysis, content inspection and detection rules to identify attacks, probes, scans and other suspicious activity.

Watch the Snort introduction on YouTube

Original PoC preserved

The original single-page proof of concept has been reorganised into the journeys below. Historical commands, outputs and screenshots are retained in context and labelled when a current build may behave differently. In that PoC, Snort 3 ran on an Ubuntu virtual machine and a Kali virtual machine generated authorised test traffic in a safe, controlled lab. The connected preparation steps supported an otherwise air-gapped installation workflow.

Choose your journey

Complete the journeys in order for a full proof of concept, or choose the task that matches an existing lab.

01Install Snort 3Build a recorded Snort and LibDAQ combination.Complete when the configuration validates and the required DAQ is listed.Advanced · Ubuntu sensor · 60–120 min

02Create local rulesDefine protected networks and validate narrowly scoped alerts.Complete when positive and negative tests behave as expected.Intermediate · Working sensor · 30–45 min

03Manage rule sourcesImport a compatible community or licensed rules package.Complete when provenance is recorded and the complete ruleset validates.Advanced · Working sensor · 30–60 min

04Test inline preventionDesign an AFPacket or NFQUEUE path with rollback.Complete when intended traffic is dropped without losing management access.Advanced · Disposable lab · 45–90 min

05Analyse a PCAPRun the same recorded traffic through a pinned ruleset.Complete when findings are reproducible and tied to packet evidence.Intermediate · Offline sensor · 30–45 min

06Deploy on pfSenseEvaluate the separate pfSense Snort package workflow.Complete when the package version, interface and policy are documented.Advanced · Lab gateway · 45–90 min

07Build your Snort labReproduce the complete evidence path and tune a detection.Complete when the extension passes positive and negative tests.Advanced · Complete lab · 4–7 hours

Before you begin

Documented baseline

The original proof of concept used Snort 3.3.5.0, LibDAQ 3.0.16, Ubuntu 22.04 LTS and pfSense 2.7.2. Treat that combination as historical evidence, not as the recommended current release. For a new build, select one supported Snort/LibDAQ/rules combination from the official downloads, record exact filenames and checksums, and validate it before moving files into an isolated environment.

Component	Historical PoC	Record for a new build
Snort	3.3.5.0	Exact release and source checksum
LibDAQ	3.0.16	Exact compatible release and DAQ modules
Sensor OS	Ubuntu 22.04 LTS	OS release, architecture and patch date
Rules	Community and registered examples	Package name, release, licence and checksum
Gateway option	pfSense 2.7.2	pfSense and package versions

Use an isolated, authorised lab

Packet capture can expose sensitive data, and inline testing can interrupt access or production traffic. Use disposable systems, obtain authorisation, keep console access, take snapshots, and document cleanup before testing.

Before starting, prepare:

• an x86-64 Ubuntu sensor with two interfaces if testing AFPacket inline mode;
• a separate, isolated traffic-generation host;
• working time synchronisation and enough storage for alerts and PCAPs;
• verified installation and rules packages; and
• a known-good snapshot or recovery method.

How data moves through this PoC

1Network or PCAP→2LibDAQ capture→3Decode and inspect→4Rule evaluation→5Alert or drop

Troubleshoot from left to right. Prove that traffic reaches the selected DAQ before changing inspectors, variables, rules or outputs.

Troubleshooting shortcuts

Symptom	Start here
Snort does not start	Validate the configuration and confirm the binary, library and DAQ paths on the installation page
A local rule never fires	Check HOME_NET, interface selection and both tests on the local-rules page
A downloaded ruleset fails	Confirm engine compatibility and validate it before activation on the rule-management page
Inline traffic stops unexpectedly	Use console access and execute the rollback on the inline IPS page
PCAP results differ	Compare the engine, configuration, ruleset and checksum recorded on the PCAP page

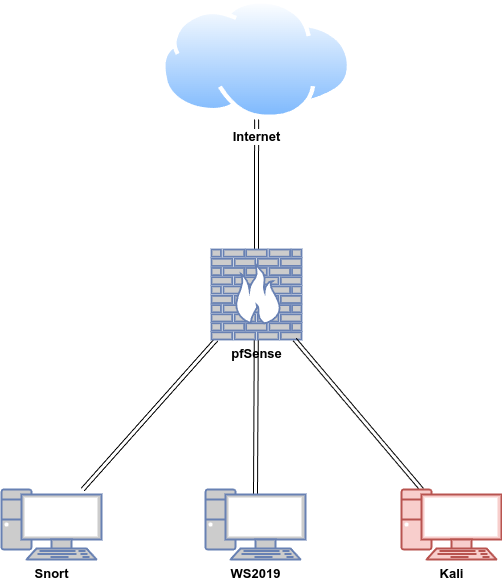

Lab architecture

Host	OS	Role	Historical address
pfSense	FreeBSD / pfSense	Optional gateway sensor	192.168.1.200 WAN / 10.0.0.2 LAN
Snort	Ubuntu 22.04 LTS	Host sensor	10.0.0.22
WS2019	Windows Server 2019	Test client	10.0.0.24
Kali	Kali Linux	Controlled traffic source	10.0.0.29

Original walkthrough map

Use this map if you previously followed the single-page version. The sequence and evidence have moved, but the PoC topics remain available.

Original topic	New location
Install Snort 3 on the Ubuntu host	Install Snort 3
Offline prerequisites and source dependencies	Prepare the connected build bundle
LibDAQ, optional dependencies and engine validation	Build LibDAQ and Snort
Disable receive offloading and verify capture	Configure capture prerequisites
Test IDS with ICMP and SSH local rules	Create and Test Local Rules
Install and configure PulledPork 3	Manage Snort Rules
Test the community ruleset	Historical community-rules validation
Test IPS with AFPacket or NFQUEUE	Test Inline Prevention
Install rules offline	Offline community-rules workflow
Read the Pikabot PCAP with Snort	Historical Pikabot exercise
Install and test Snort on pfSense	Run Snort on pfSense
Rebuild and extend the complete lab	Build Your Snort Lab

Continue with a journey

Start with installationInstall and validate Snort and LibDAQ.Start detectingUse an existing sensor to create a test rule.Build your labComplete an evidence-based challenge.

Where to go next

Understanding IDS/IPSReview placement, detection and prevention concepts.Explore SuricataCompare another open-source network security engine.Integrate alertsSend network IDS evidence into Wazuh.
