Build Workflow One

Connect the demonstrated Wazuh, Shuffle, TheHive, and response components. Validate each integration independently before enabling the complete chain.

Machines: isolated Wazuh, Shuffle, TheHive, and target labUsers: platform administrators + workflow approverStarting point: scoped credentials, synthetic alert, rollback plan, and healthy integrations
What you are building

Workflow One · enrich and create a case

Multi-tool investigation path
Goal
Turn a Wazuh detection into enriched, reviewable case evidence.
Input
A synthetic rule 100200 alert containing file hashes.
Output
VirusTotal context, a TheHive alert and case, and an email.
Checkpoint
Every result refers to the same source alert and SHA-256.
Ready · select Play workflow or choose a step.

Connect the response stack

Configure Wazuh

Configure Wazuh Windows Client

The original PoC added the Administrator Downloads folder to a Windows Security exclusion and executed Mimikatz to generate a recognisable alert. The original screenshots are retained below so the recorded workflow can still be understood.


Advanced isolated reproduction only

Do not disable endpoint protection or download and execute Mimikatz for the beginner path. Mimikatz is a credential-access tool and may expose secrets, trigger containment, or create unsafe habits. Use the synthetic alert in the Shuffle Hands-on Labs to learn the workflow. Reproduce the original executable-based test only in a disposable, isolated, authorised environment with an agreed cleanup plan.

For an authorised advanced reproduction, follow your organisation's malware handling procedure and confirm the Windows endpoint contains no real credentials before generating the test event.


Configure Wazuh Manager

On Wazuh Manager, verify that there are entries related to Mimikatz in the archives file

cat /var/ossec/logs/archives/archives.json | grep -i mimikatz

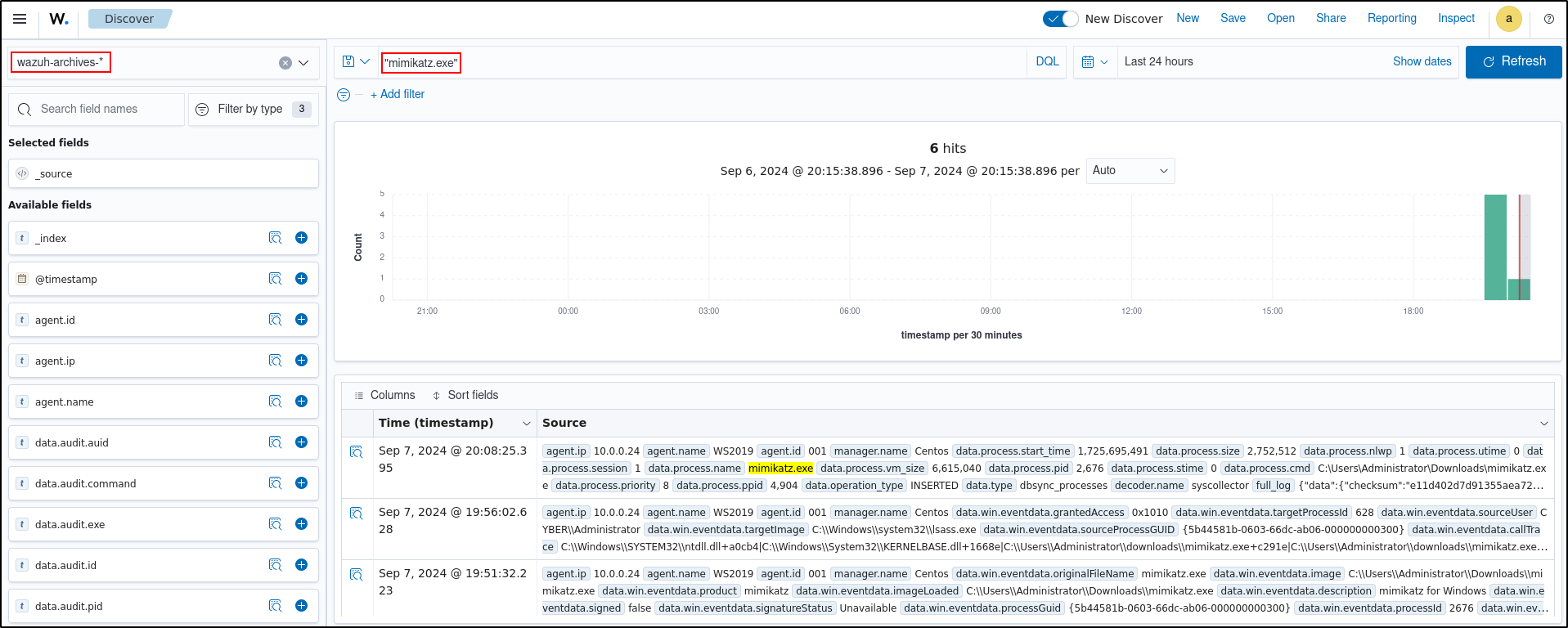

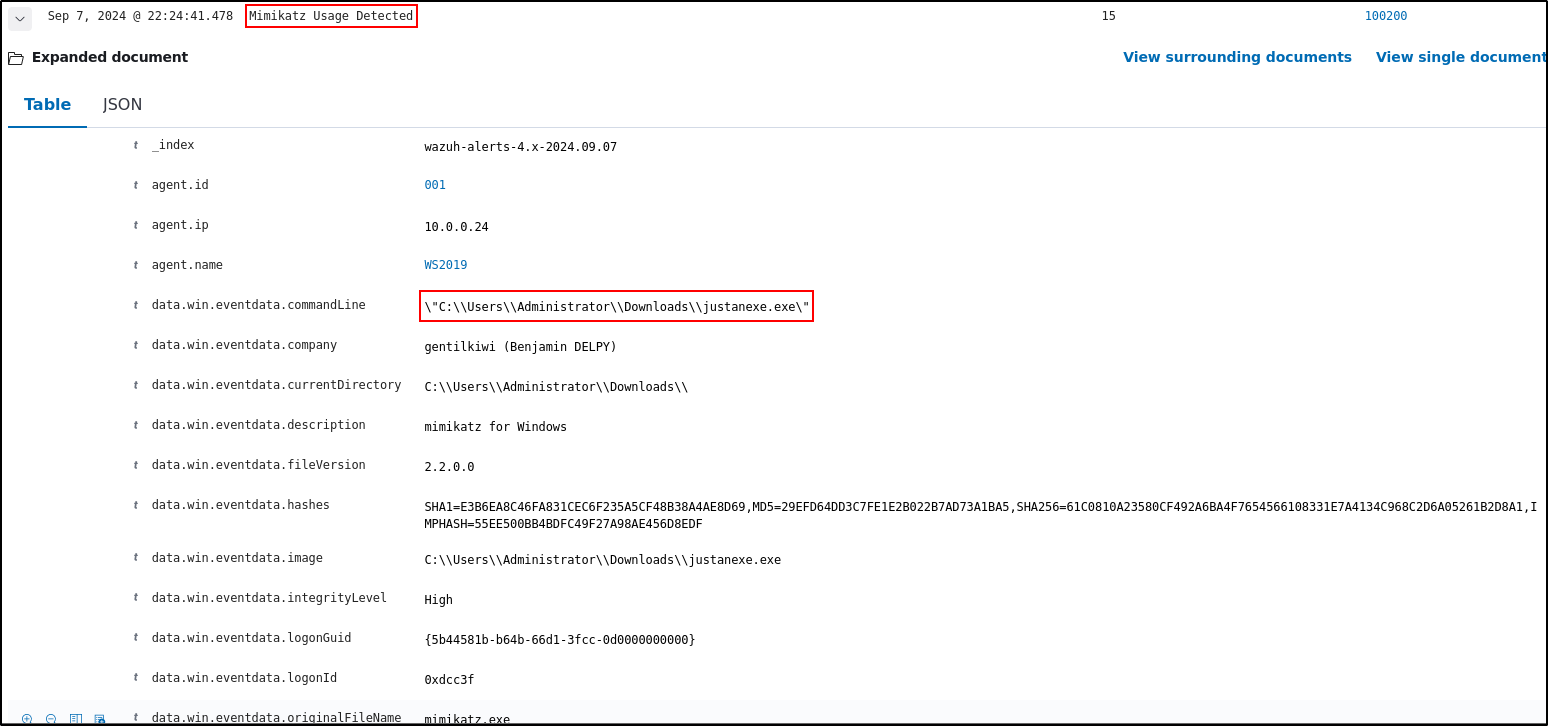

Verify that searching for “mimikatz.exe” in wazuh-archive-* index returns a result

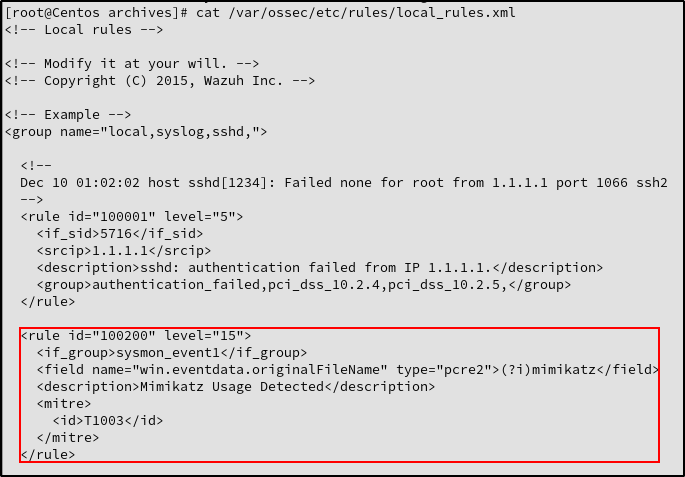

Add a custom rule in /var/ossec/etc/rules/local_rules.xml

Make sure indentation aligns with other rules

nano /var/ossec/etc/rules/local_rules.xml

<rule id="100200" level="15">
  <if_group>sysmon_event1</if_group>
  <field name="win.eventdata.originalFileName" type="pcre2">(?i)mimikatz</field>
  <description>Mimikatz Usage Detected</description>
  <mitre>
    <id>T1003</id>
  </mitre>
</rule>


Restart Wazuh Manager

systemctl restart wazuh-manager

Configure Windows Client

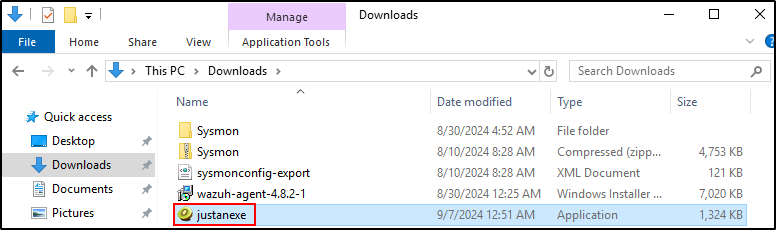

Rename mimikatz.exe to something else (e.g. justanexe)


Open PowerShell as Administrator and execute mimikatz (justanexe)


Configure Wazuh Manager

On Wazuh Manager, verify that there are entries related to ruld id 10020 Mimikatz Usage Detected


Configure Shuffle

Upload the required Apps

On a machine with internet connection:

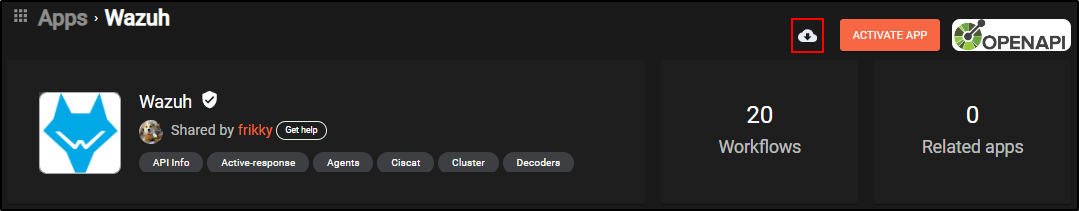

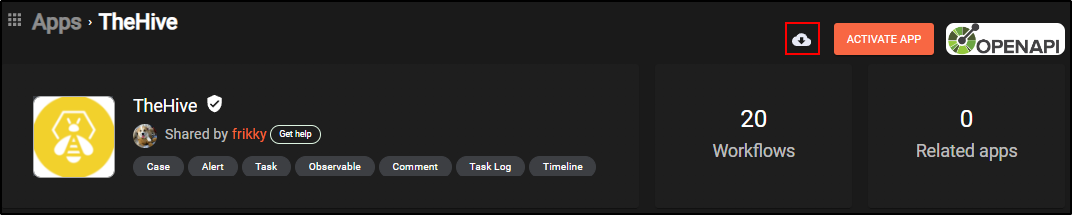

Search for Wazuh, TheHive and VirusTotal in https://shuffler.io/search

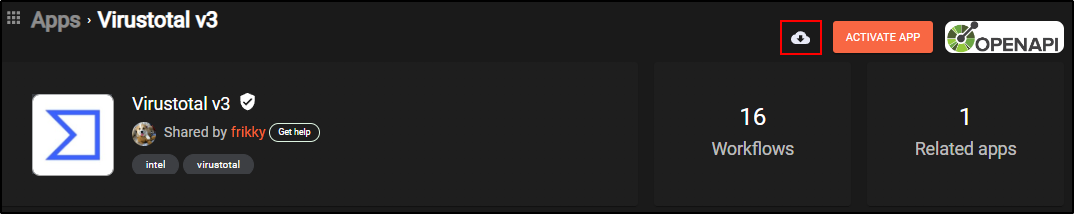

Download the OpenAPIs (JSON file)




Transfer the JSON files to the air-gapped environement.

Navigate to Shuffle web UI and into Apps.

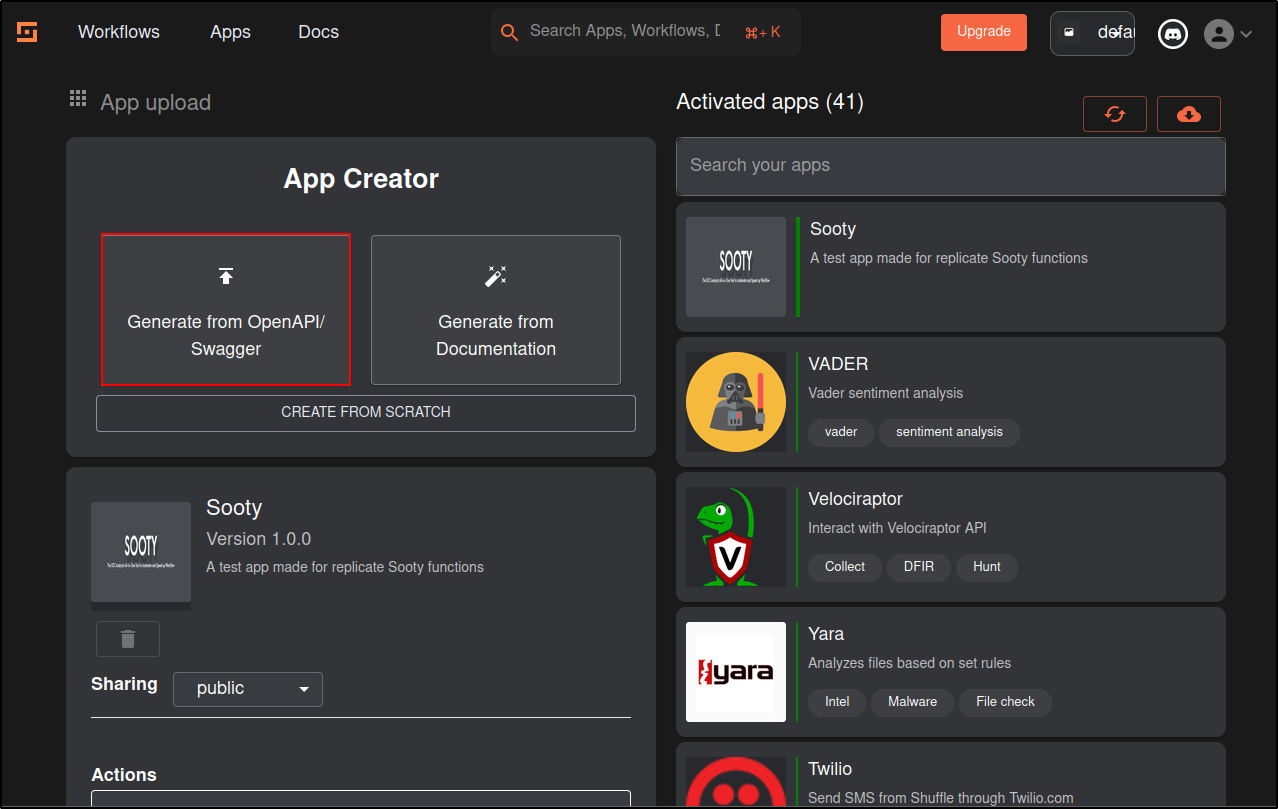

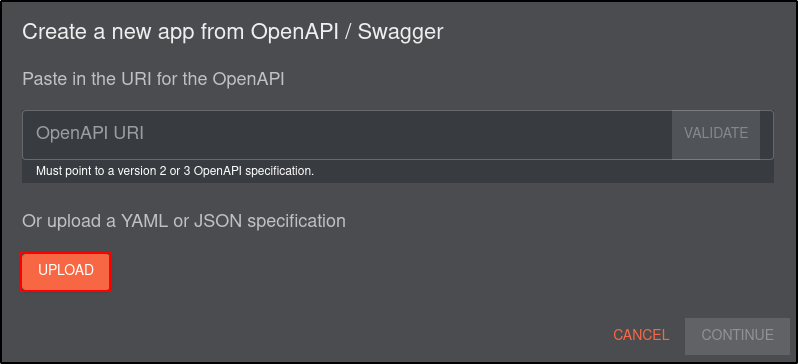

Select Generate from Open API

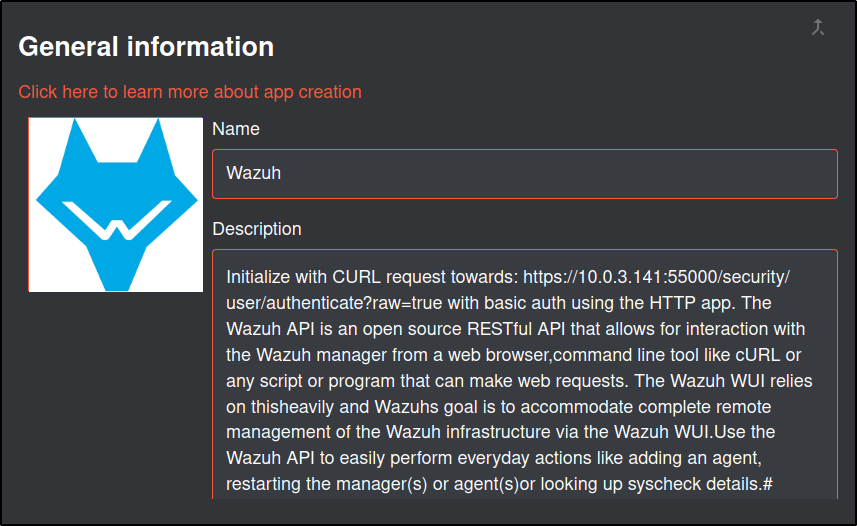

Upload the Wazuh JSON file


Scroll to the bottom and click save.

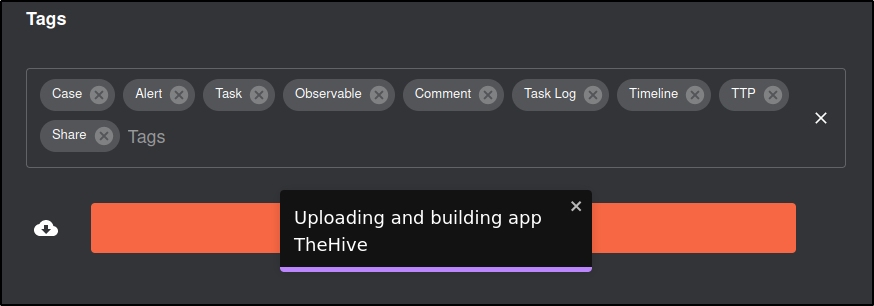

Repeat the same proccess for TheHive

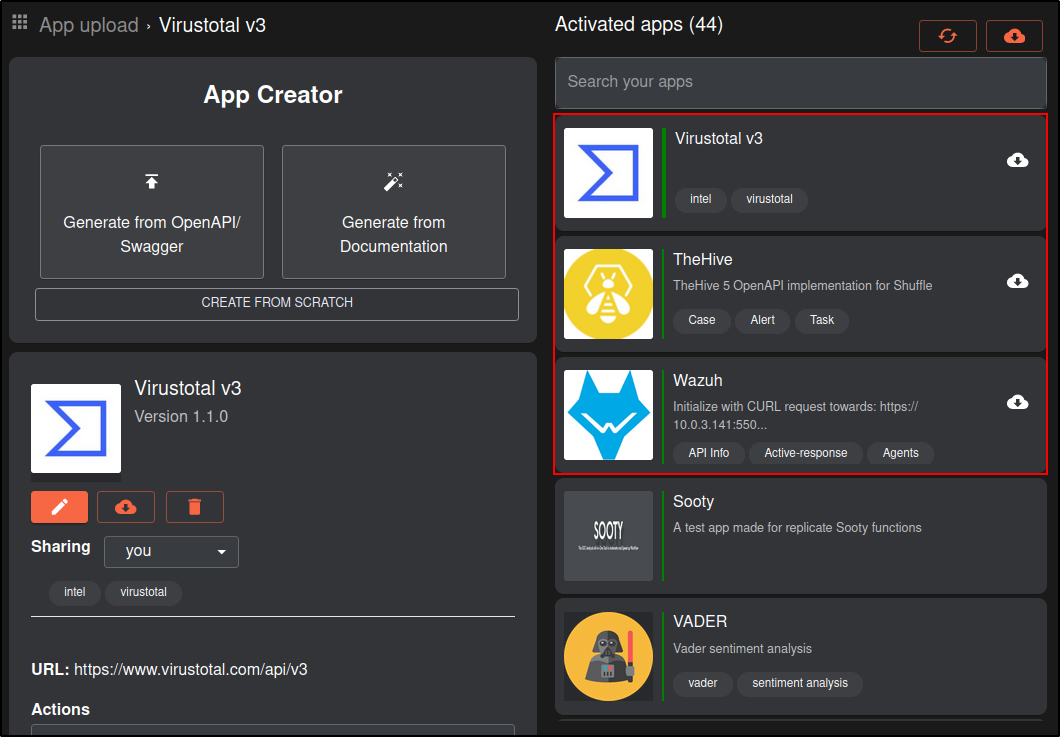

Verify that Wazuh, TheHive and Virustotal appear in the Activated Apps


To ensure that the new app is recognized by Shuffle, restart the Shuffle backend and frontend containers:

docker restart shuffle-backend
docker restart shuffle-frontend

Create a Workflow

Repeat the steps covered in Introduction to Shuffle.

Create a new workflow called SOC Automation Example.

Click on the Triggers tab in the bottom left and drag the Webhook to the workspace.

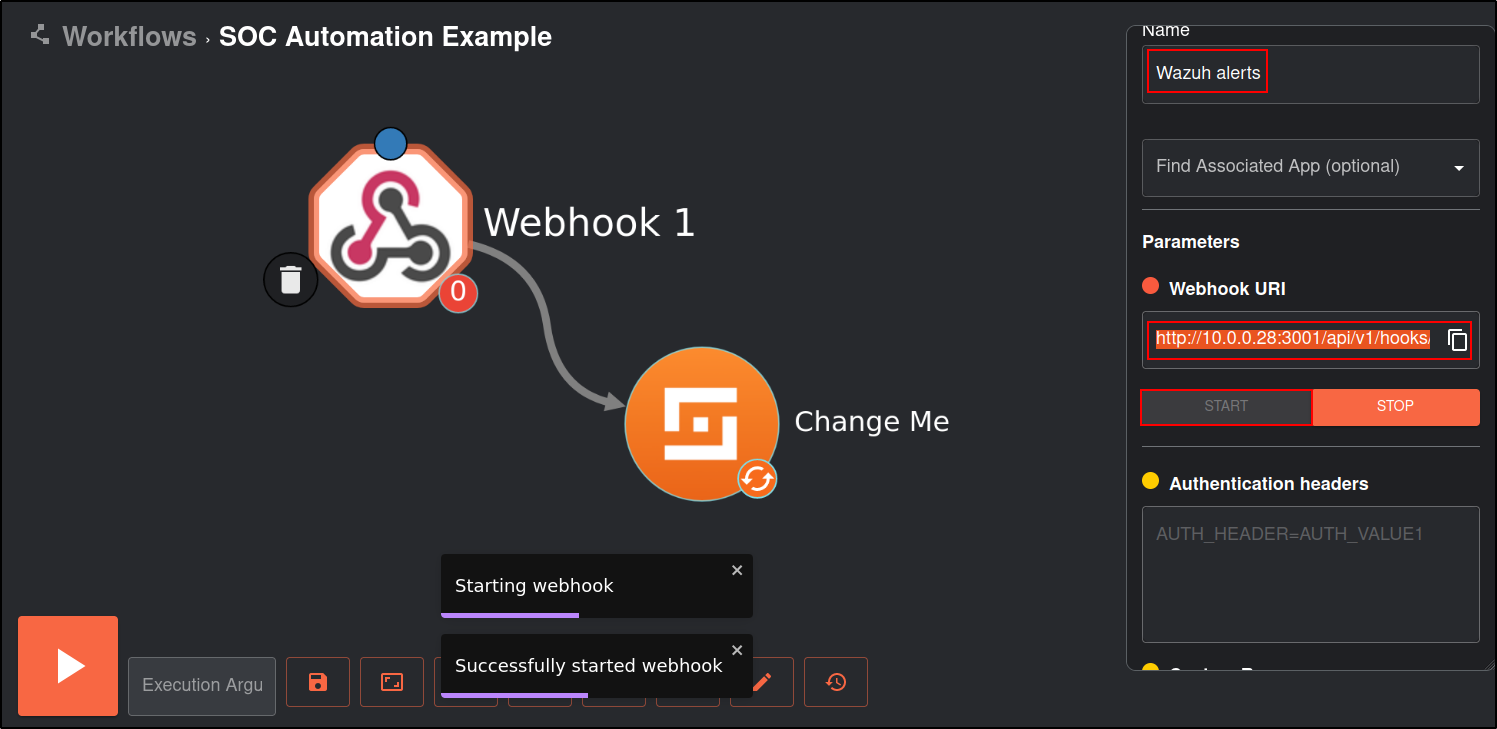

Click on the webhook and rename it to Wazuh alerts. Copy and save the webhook URI and start the webhook. The webhook URI looks like the following:

http://10.0.0.28:3001/api/v1/hooks/WORKFLOW_ONE_WEBHOOK_ID


Configure Wazuh server

Download the custom integration script custom-shuffle and custom-shuffle.py. Save it as custom-shuffle and custom-shuffle.py in /var/ossec/integrations directory. The script must contain execution permissions and belong to the root user of the wazuh group:

chmod 750 /var/ossec/integrations/custom-shuffle*
chown root:wazuh /var/ossec/integrations/custom-shuffle*

Copy and paste the following into /var/ossec/etc/ossec.conf

This is the rule id for Mimikatz Usage Detected that we defined in the Wazuh Manager

 <integration>
      <name>custom-shuffle</name>
      <rule_id>100200</rule_id>
      <hook_url>http://10.0.0.28:3001/api/v1/hooks/WORKFLOW_ONE_WEBHOOK_ID</hook_url>
      <alert_format>json</alert_format>
  </integration>

Restart the Wazuh manager service to apply changes:

sudo systemctl restart wazuh-manager

Verify that there are no errors in the ossec and integrations logs

tail /var/ossec/logs/ossec.log
tail /var/ossec/logs/integrations.log

Configure Shuffle

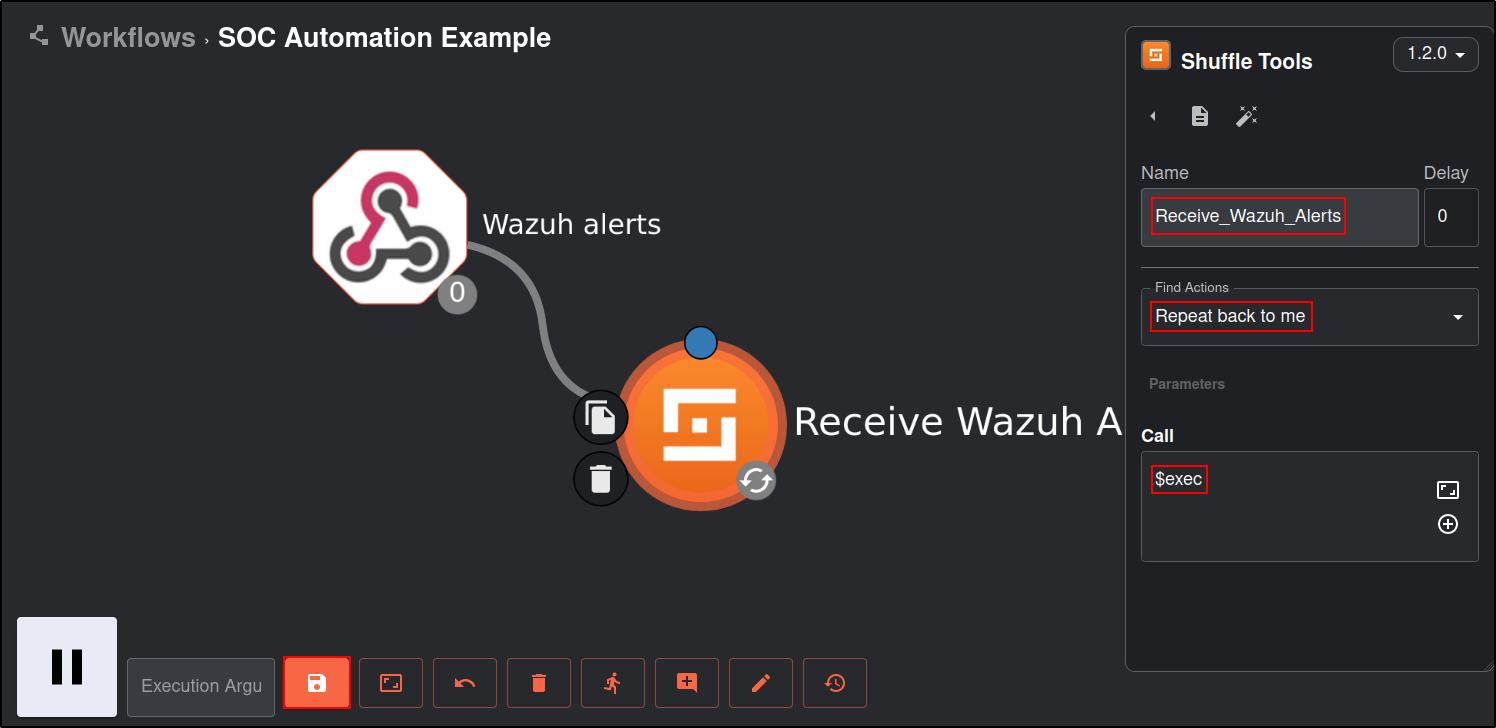

Click on the Shuffle Tools app named “Change me” and rename it to Receive_Wazuh_alerts. Set the call option to “$exec”, and save the workflow. This Shuffle app now repeats the events that are received by the Wazuh alerts webhook. This allows us to test that Shuffle can receive Wazuh alerts.


On Windows host, open PowerShell as Administrator and execute mimikatz (justanexe)


On Wazuh server, verify logs related to Mimikatz are generated

tail /var/ossec/logs/integrations.log

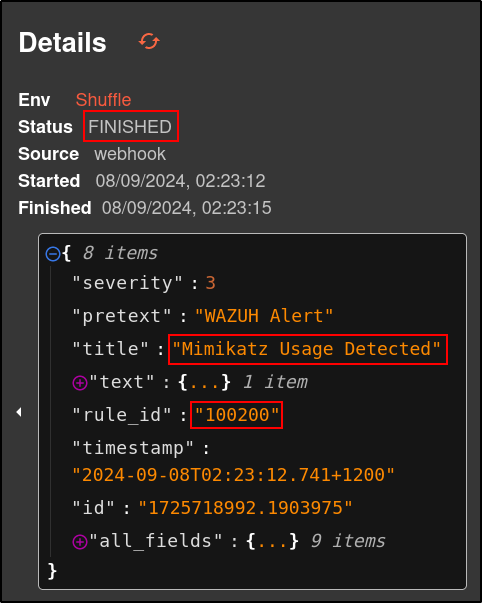

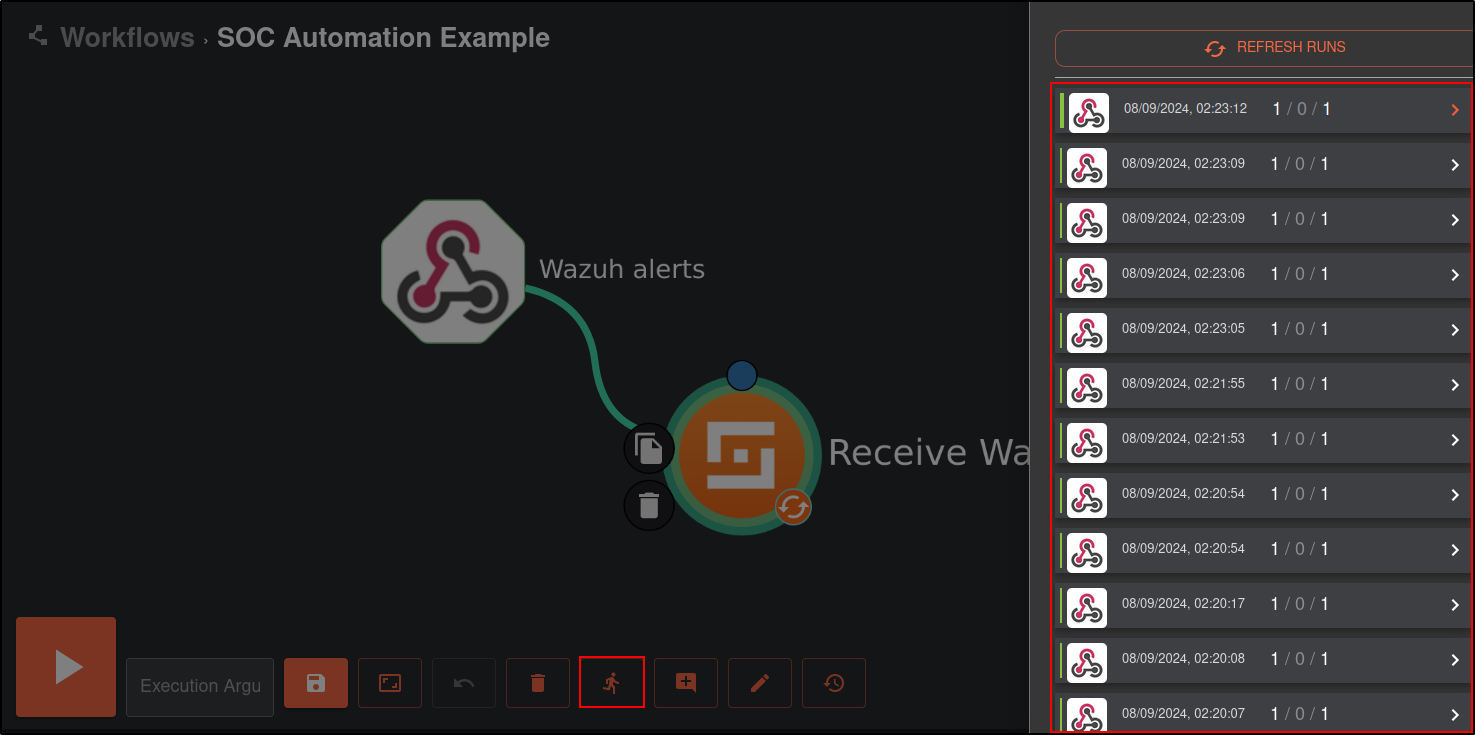

Verify Shuffle is receiving alerts without any errors

Alerts should be green indicating status is FINISHED

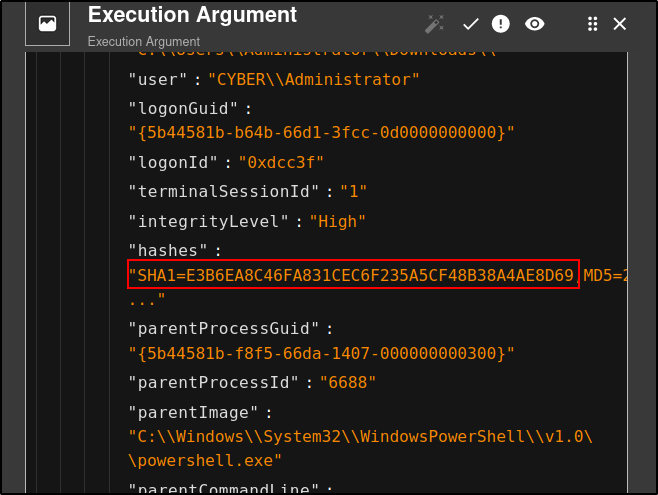

The results displays a SHA1, MD5 and SHA256 hashes


SHA1=E3B6EA8C46FA831CEC6F235A5CF48B38A4AE8D69,MD5=29EFD64DD3C7FE1E2B022B7AD73A1BA5,SHA256=61C0810A23580CF492A6BA4F7654566108331E7A4134C968C2D6A05261B2D8A1,IMPHASH=55EE500BB4BDFC49F27A98AE456D8EDF

Create a regular expression to specifically extract the SHA256 hash from the string.

SHA256=([A-Fa-f0-9]{64})

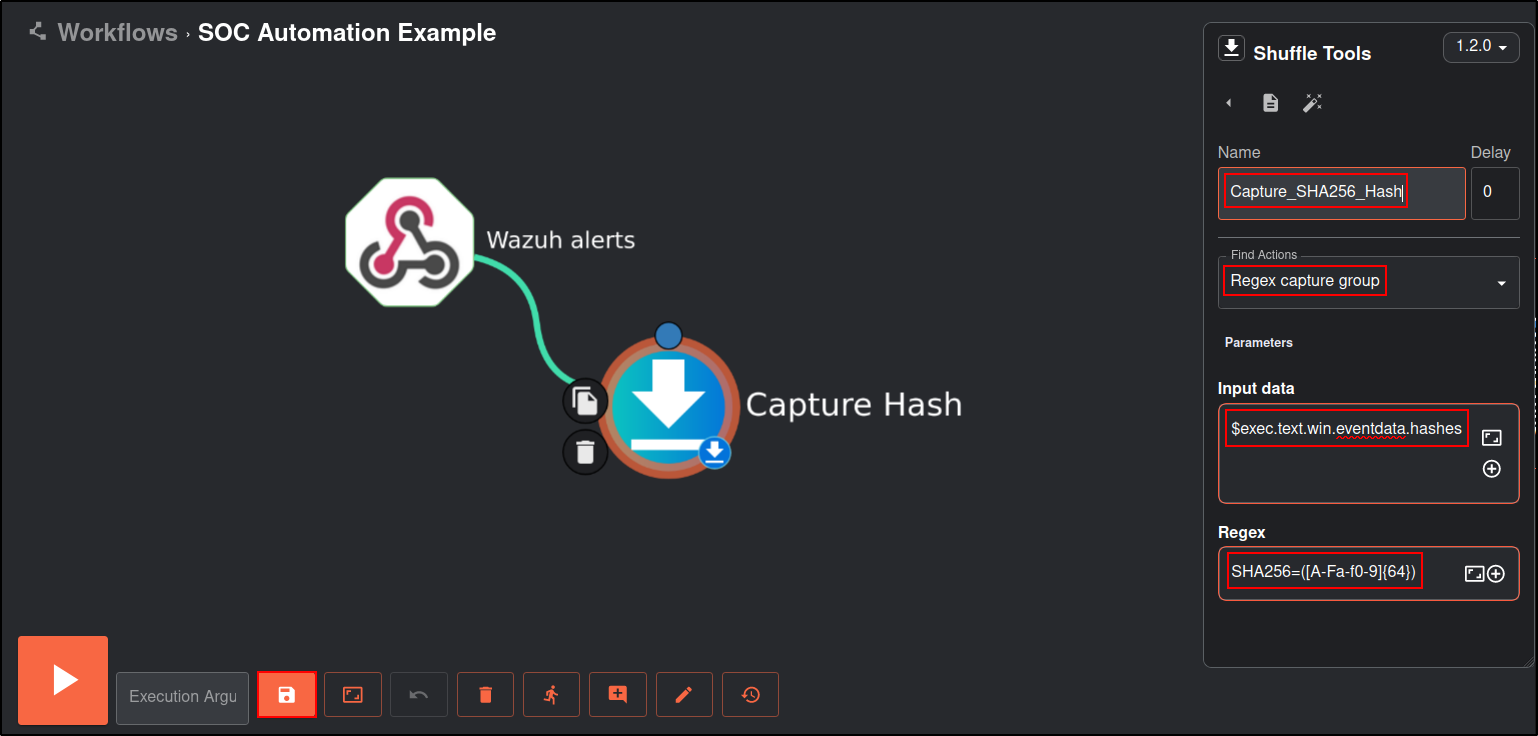

Click Shuffle Tools icon. Change the Name to Capture_SHA256_HASH, Find Actions to Regex Capture group, Input data to $exec.text.win.eventdata.hashes and Regex to SHA256=([A-Fa-f0-9]{64})


Save the workflow. Trigger the rule id 100200 by running mimikatz (justanexe) from Windows host.

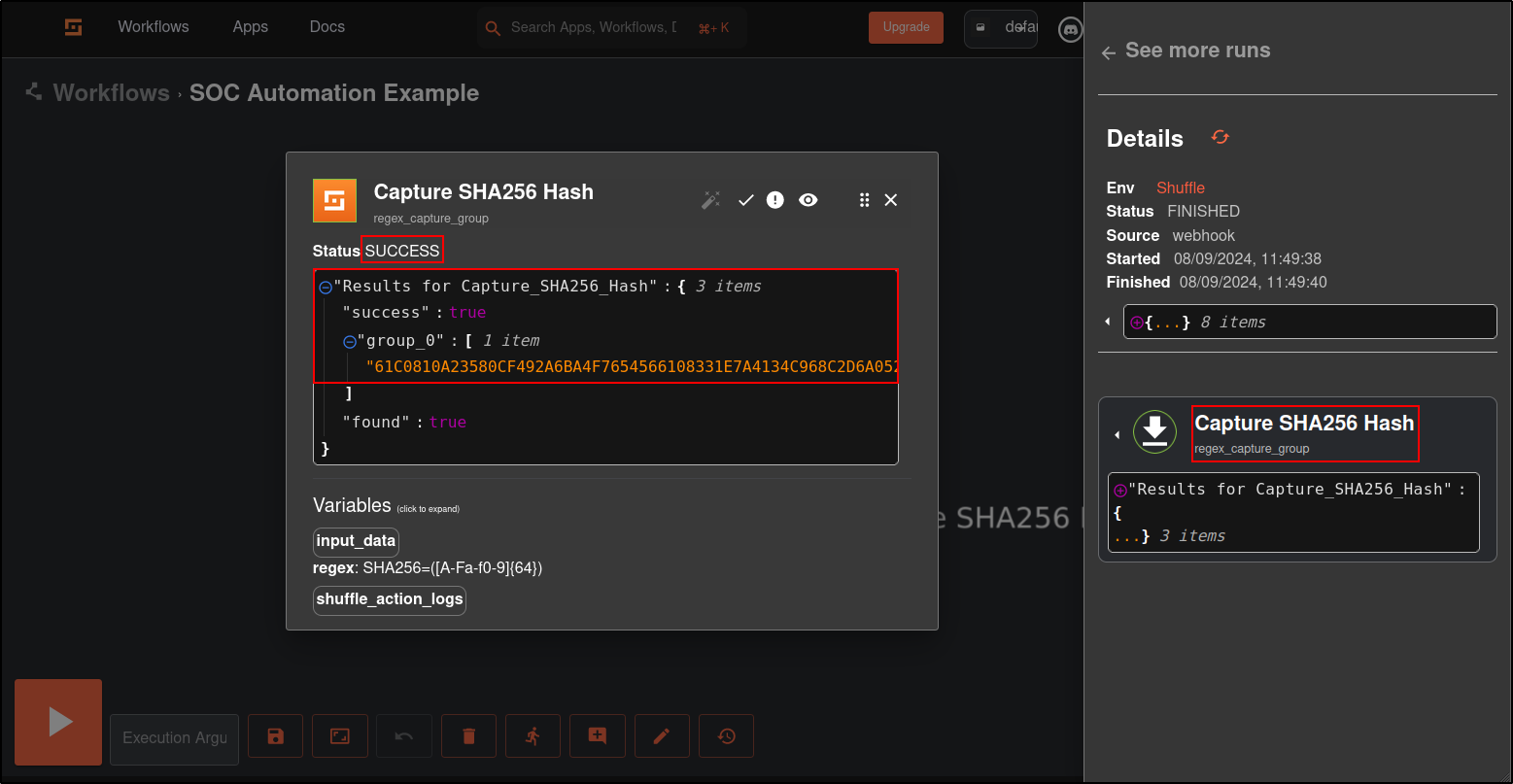

You should see SHA256 hash returned in the results. If you are not seeing the SHA256 hash, try restarting your Shuffle by running docker compose down and docker compose up -d

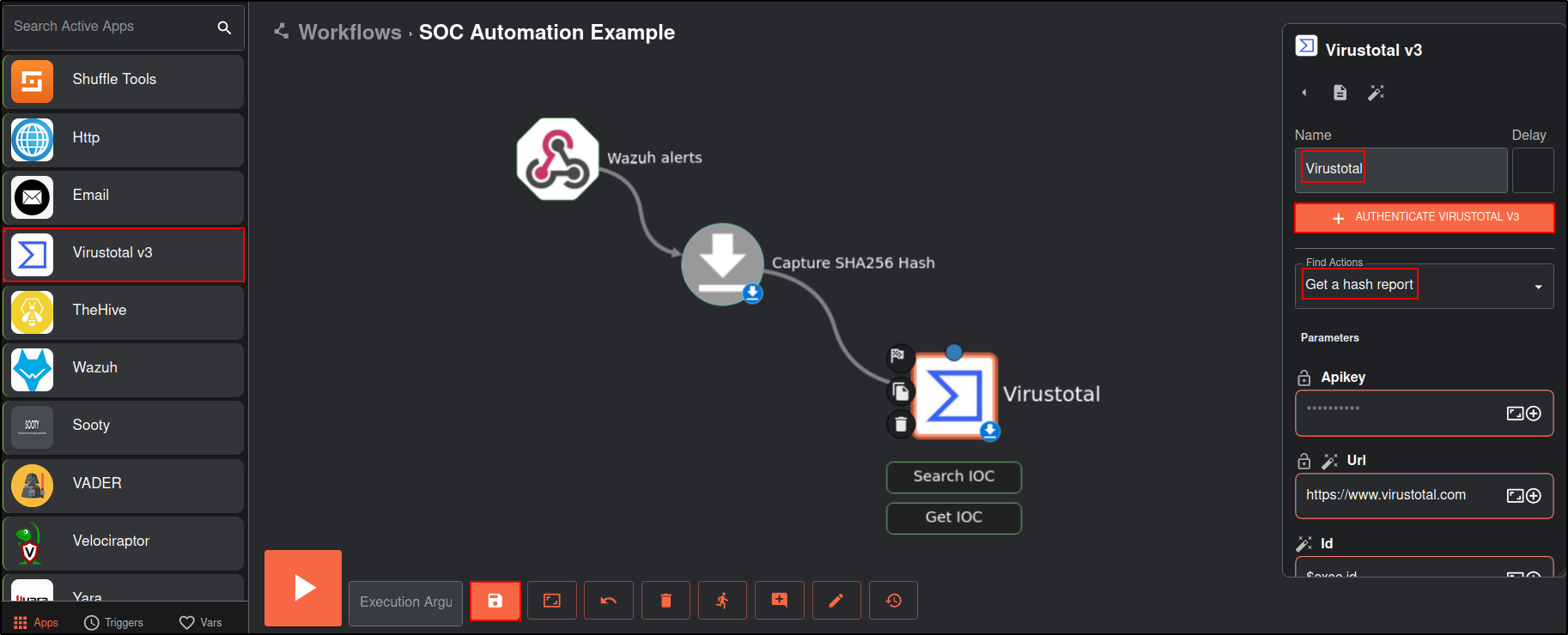

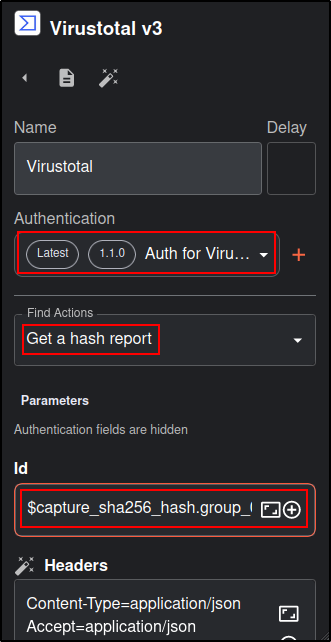

Drag and drop the VirusTotal app. Change the name to VirusTotal and set Find Actions to Get a hash report.

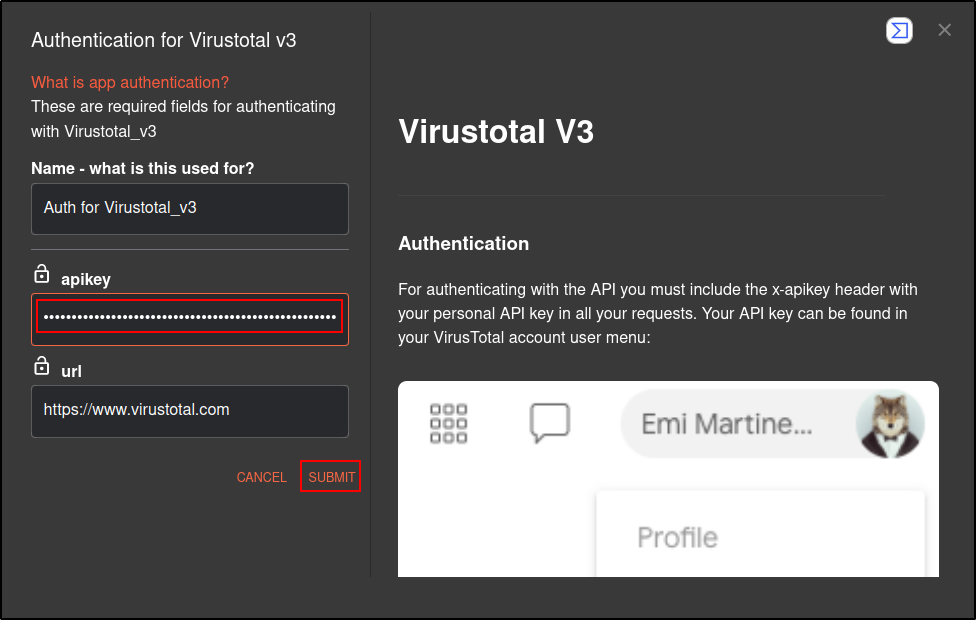

Click Authenticate VirusTotal V3 and copy and paste your VirusTotal API key. You must create an account in VirusTotal to obtain the API key. Note: Internet connection was enabled from this point.

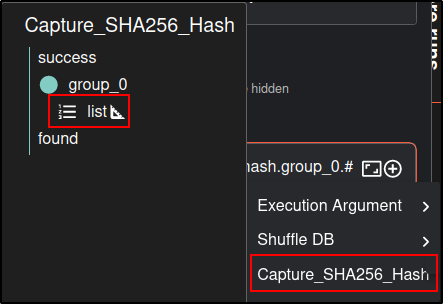

For ID, select Capture_SHA256_Hash list



Save the workflow. Restart Shuffle if required.

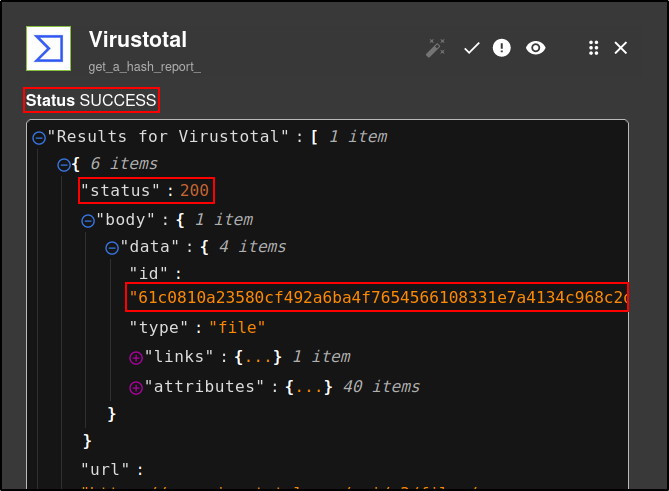

Verify that VirusTotal get_a_hash_report returns the expected SHA-256 hash with status code 200.

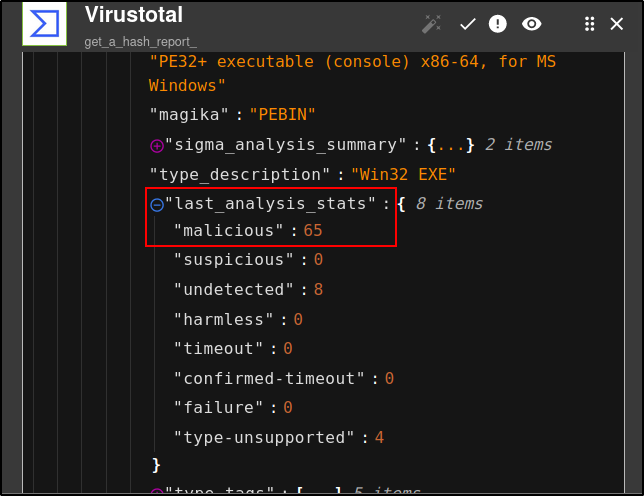

Expand the last_analysis_stats. Malicious: 65 indicates that 65 scanners have detected this executable as malicious.



Configure TheHive

Login to TheHive web UI

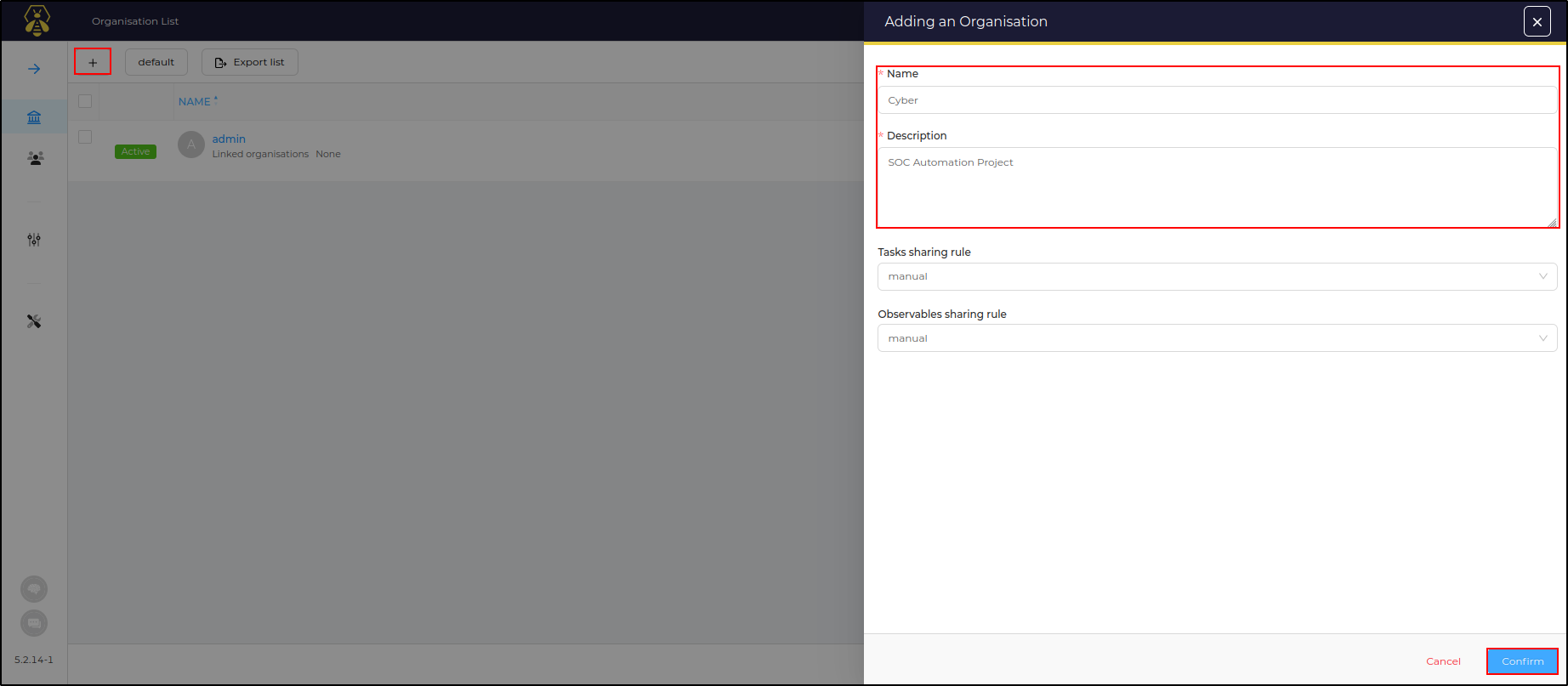

Create a new organisation called Cyber and click Confirm


Click Cyber organisation

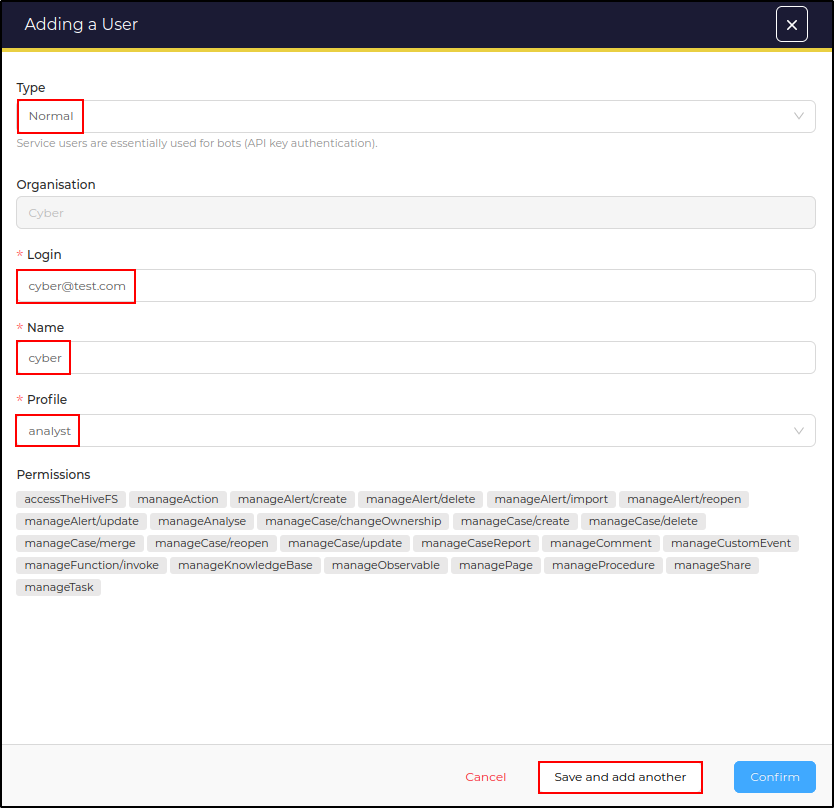

Add a new user with following details

  • Type: Normal
  • Login: cyber@test.com
  • Name: cyber
  • Profile: analyst

Save and add another user

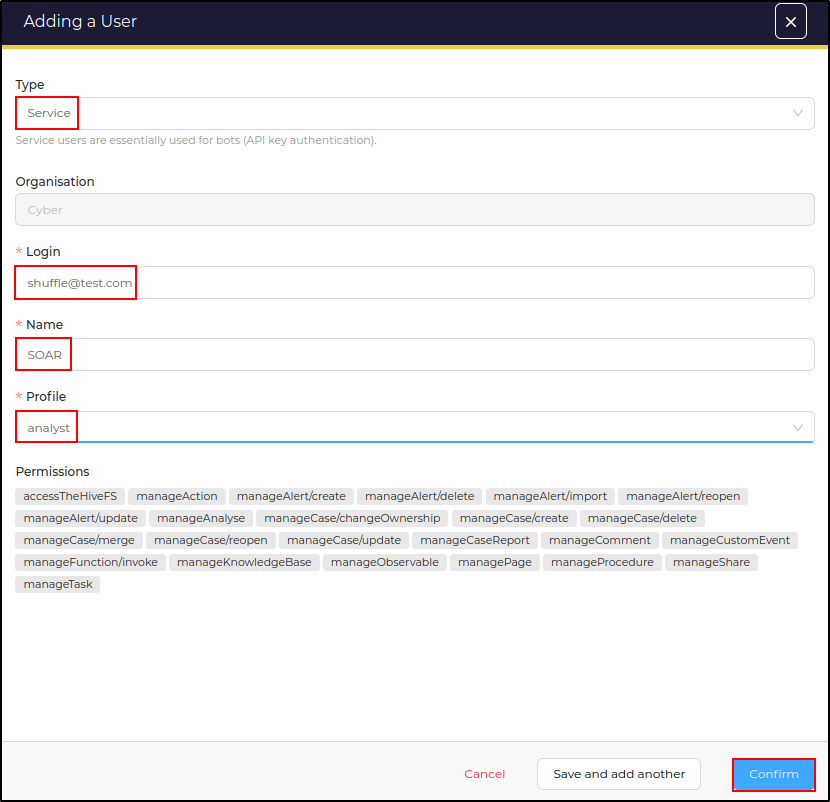

Add the second user with following details

  • Type: Service
  • Login: shuffle@test.com
  • Name: SOAR
  • Profile: analyst

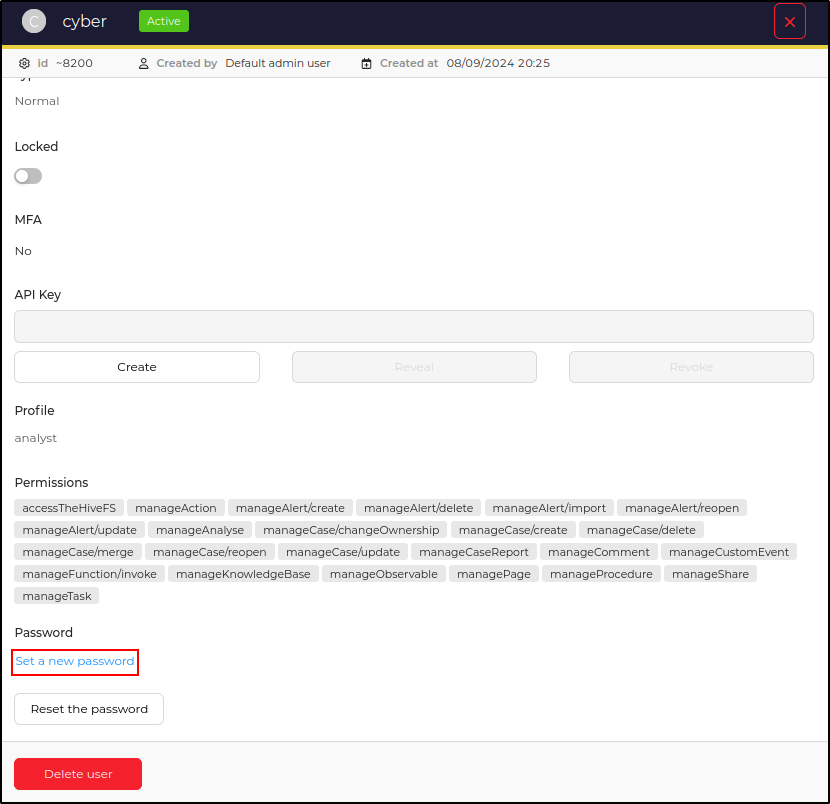

Click Preview on the cyber user and set a new password


Click Preview on the SOAR user and create a new lab-only API key. Copy it to a password manager and do not place the real value in screenshots or documentation. If the previously documented key was ever active, revoke it.

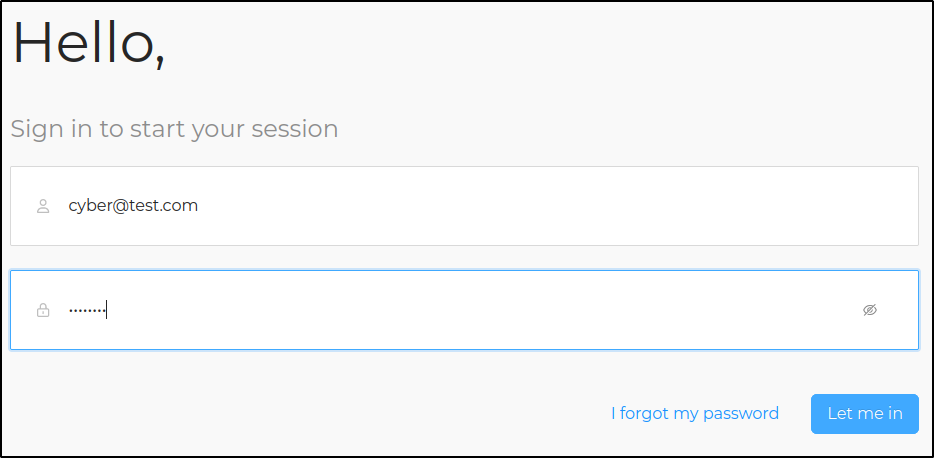

Log out of the web UI as admin and login as the cyber user.


Configure Shuffle

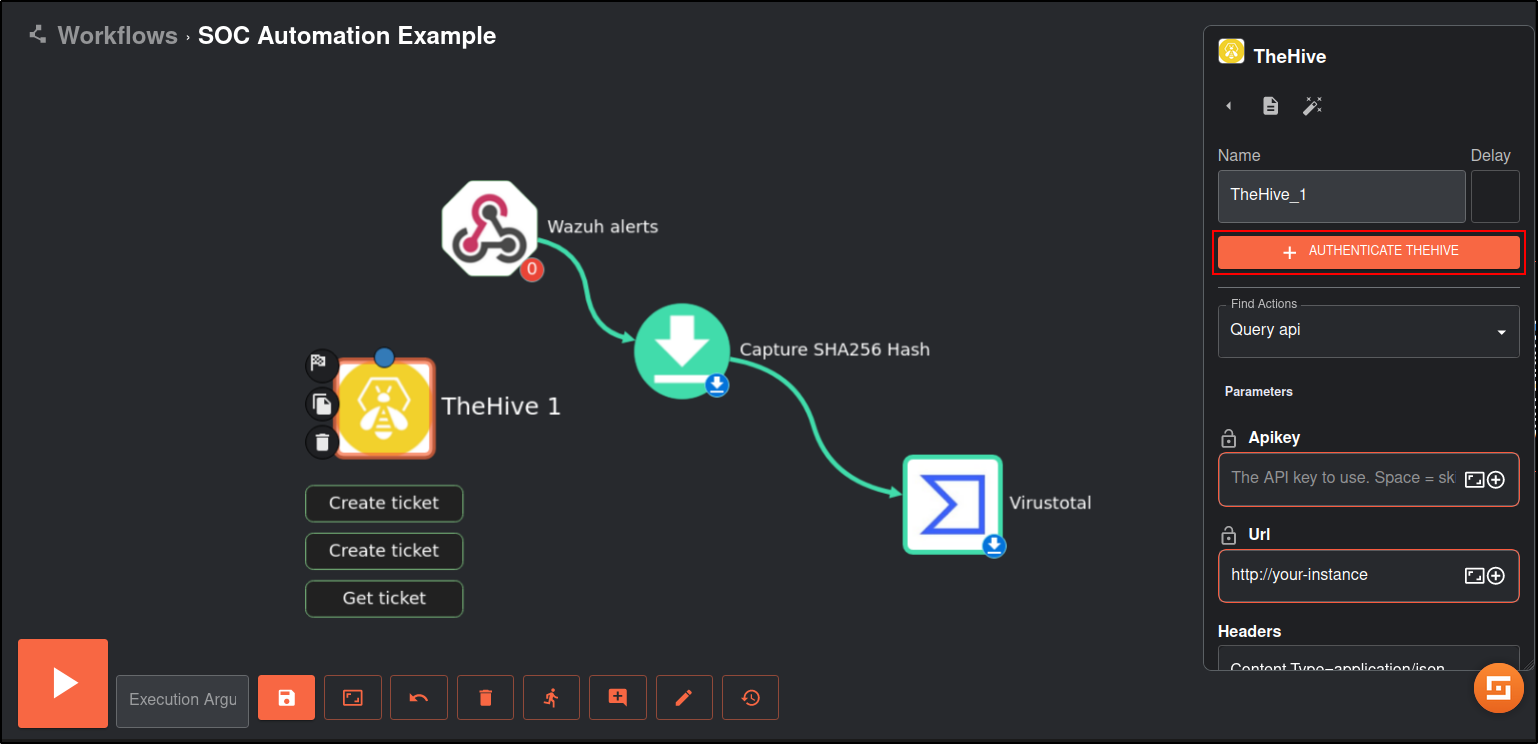

Drag and drop TheHive app to the Workflow.

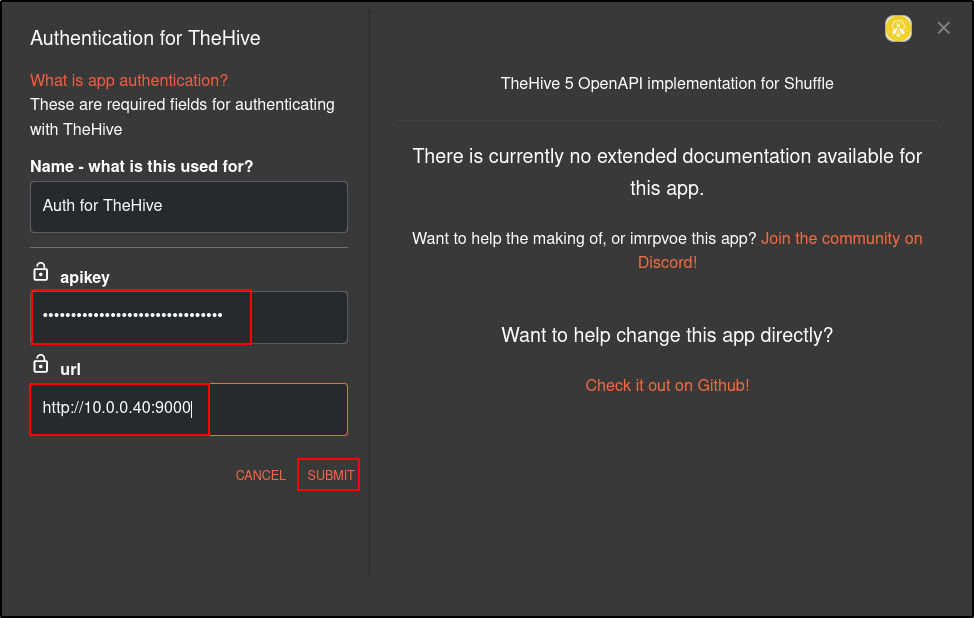

Click TheHive App and click Authenticate TheHive.


Copy and paste the newly created <THEHIVE_API_KEY> value.

Enter the url for TheHive http://10.0.0.40:9000

Click Submit.

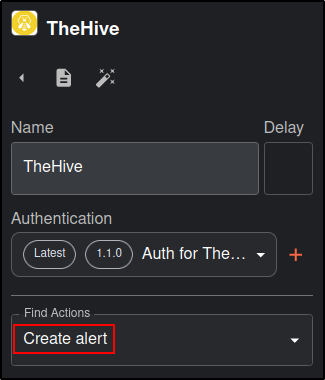

Set Find Actions to Create alert


Connect Virustotal App to TheHive app

There seems to be a bug with how TheHive app handles some of its parameters at the backend.

To bypass the error, set the values for Flag and Pap in JSON first.

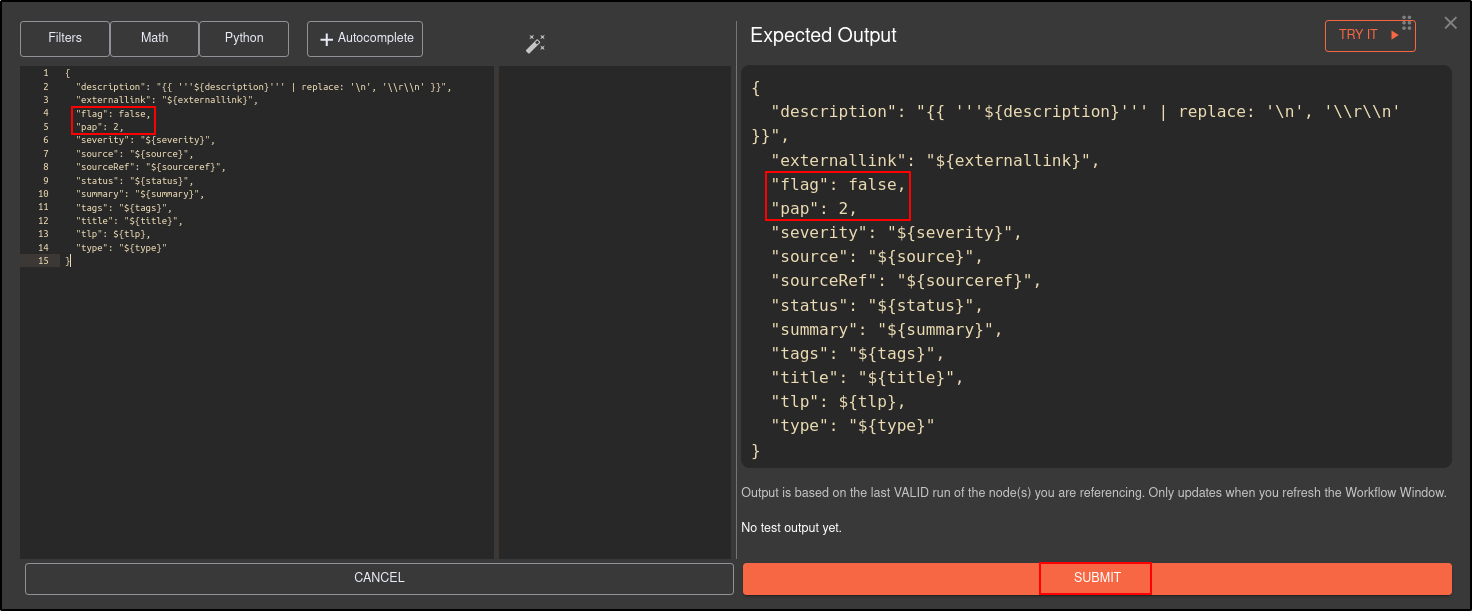

Uncheck Show Body textbox. You should see Hide Body. Click Expand Window icon.


Manually set the Flag to false and Pap to 2. Click Submit.

{
  "description": "{{ '''${description}''' | replace: '\n', '\\r\\n' }}",
  "externallink": "${externallink}",
  "flag": false,
  "pap": 2,
  "severity": "${severity}",
  "source": "${source}",
  "sourceRef": "${sourceref}",
  "status": "${status}",
  "summary": "${summary}",
  "tags": "${tags}",
  "title": "${title}",
  "tlp": ${tlp},
  "type": "${type}"
}

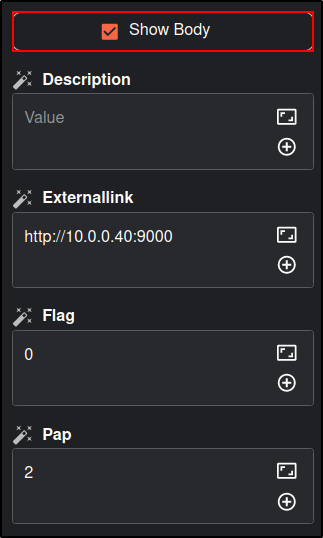

Check the Show Body and this will allow you to edit the app in GUI.

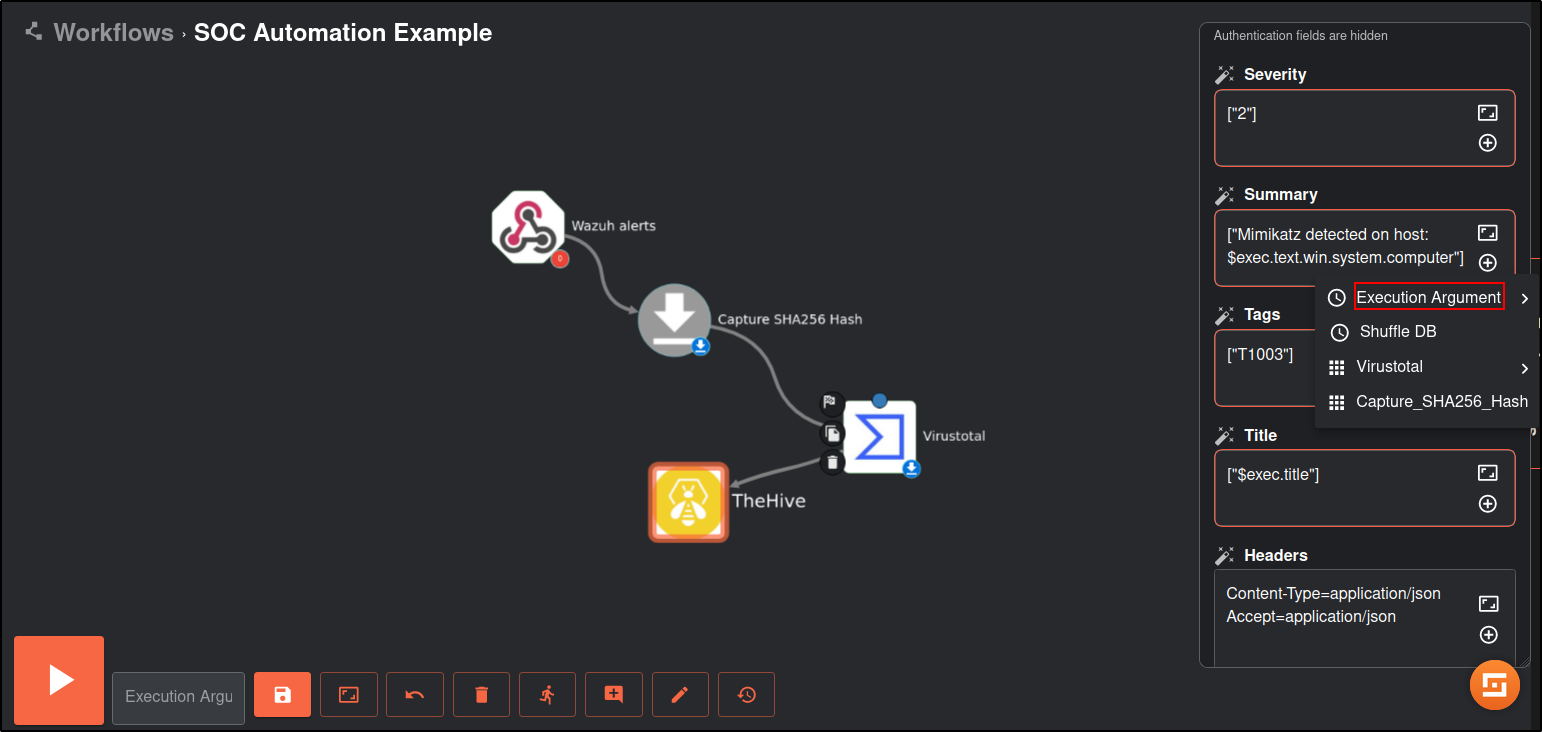

Set the values to the following.

Note: the values in brackets indicate the Execution Argument. Add the execution argument by clicking the + icon.

Name Create_Alert
Severity 2
Summary Mimikatz detected on host: (computer) and the processID: (processID) and commandLine: (commandLine)
Tags [”T1003”]
Title (title)
Description (rule description)
Flag false
Pap 2
Source Wazuh
Sourceref Incident-(timestamp)
Status New
Tlp 2
Type Internal

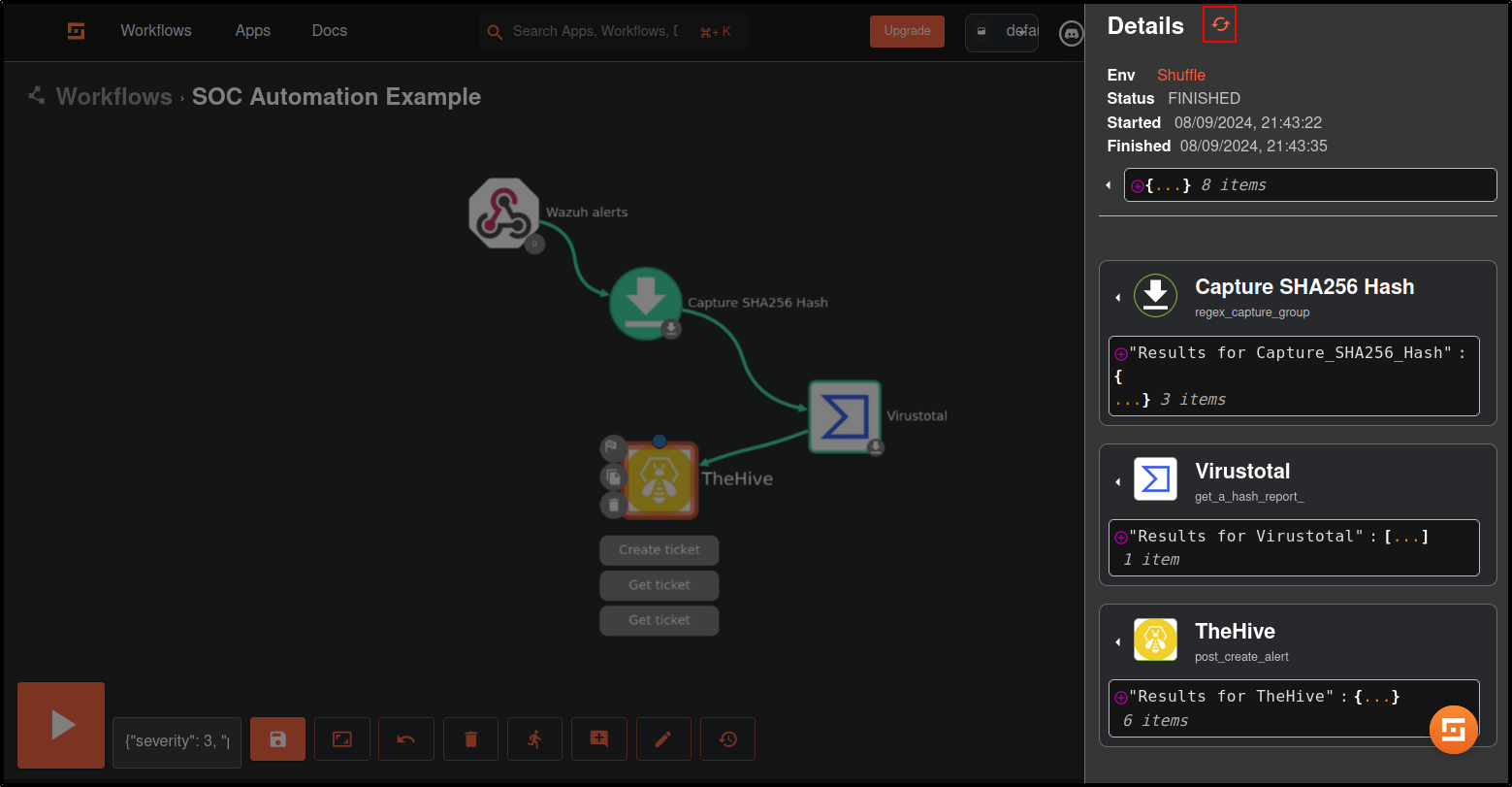

Save the workflow. Click Show Execution (person icon) then rerun the workflow (refresh icon).

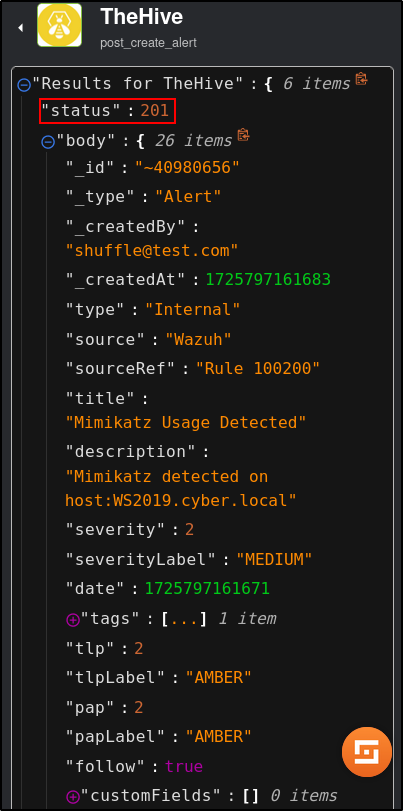

Verify status code from TheHive is 201

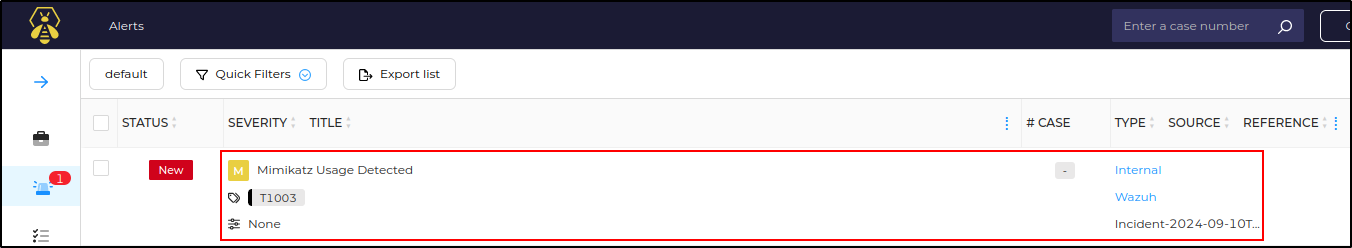

Verify that the Mimikatz Usage Detected alert is generated on TheHive UI.

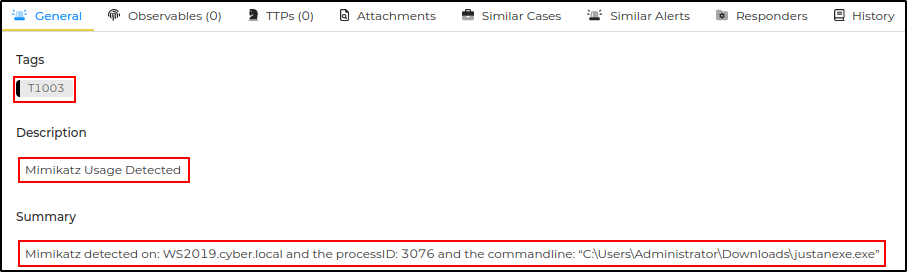

Click on the alert to view the details.


Drag and drop the Email app to the workflow.

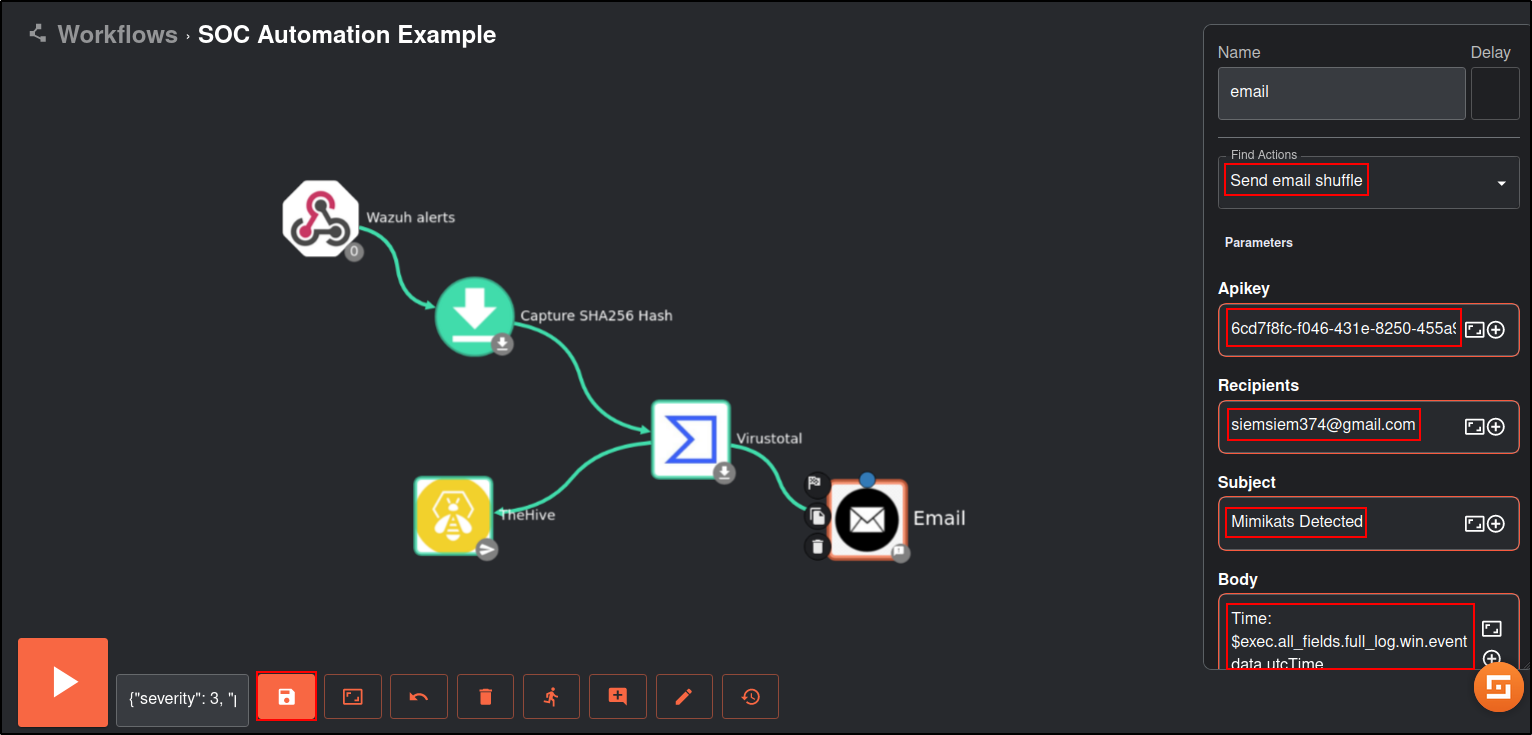

Edit the Email app with following details:

Note: the values in brackets indicate the Execution Argument. Add the execution argument by clicking the + icon.

Name Email
Find Actions Send email shuffle
Apikey (Create account on https://shuffler.io/ to obtain API key)
Recipients (Email address receiving the alert)
Subject Mimikatz detected
Body Time: (utcTime)
Title: (title)
Host: (computer)
Malicious: (malicious)*

*Select VirusTotal metadata instead of the Execution Argument |

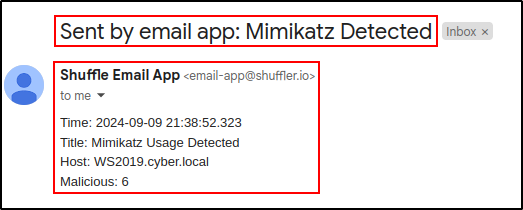

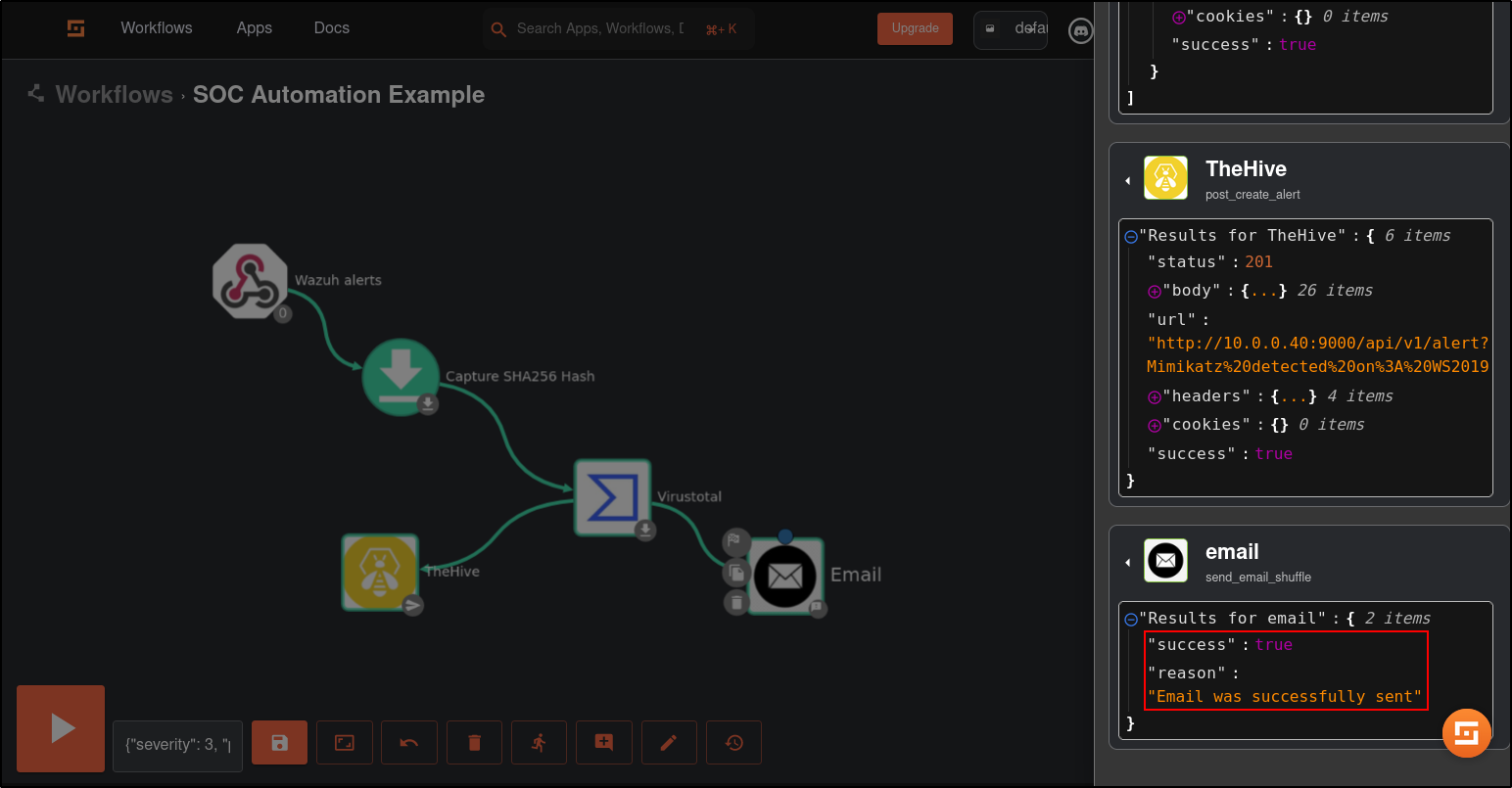

Save and rerun the workflow. If you want to get status code 201 from TheHive, you must delete existing alert. Verify that the results are successful and you received the email.

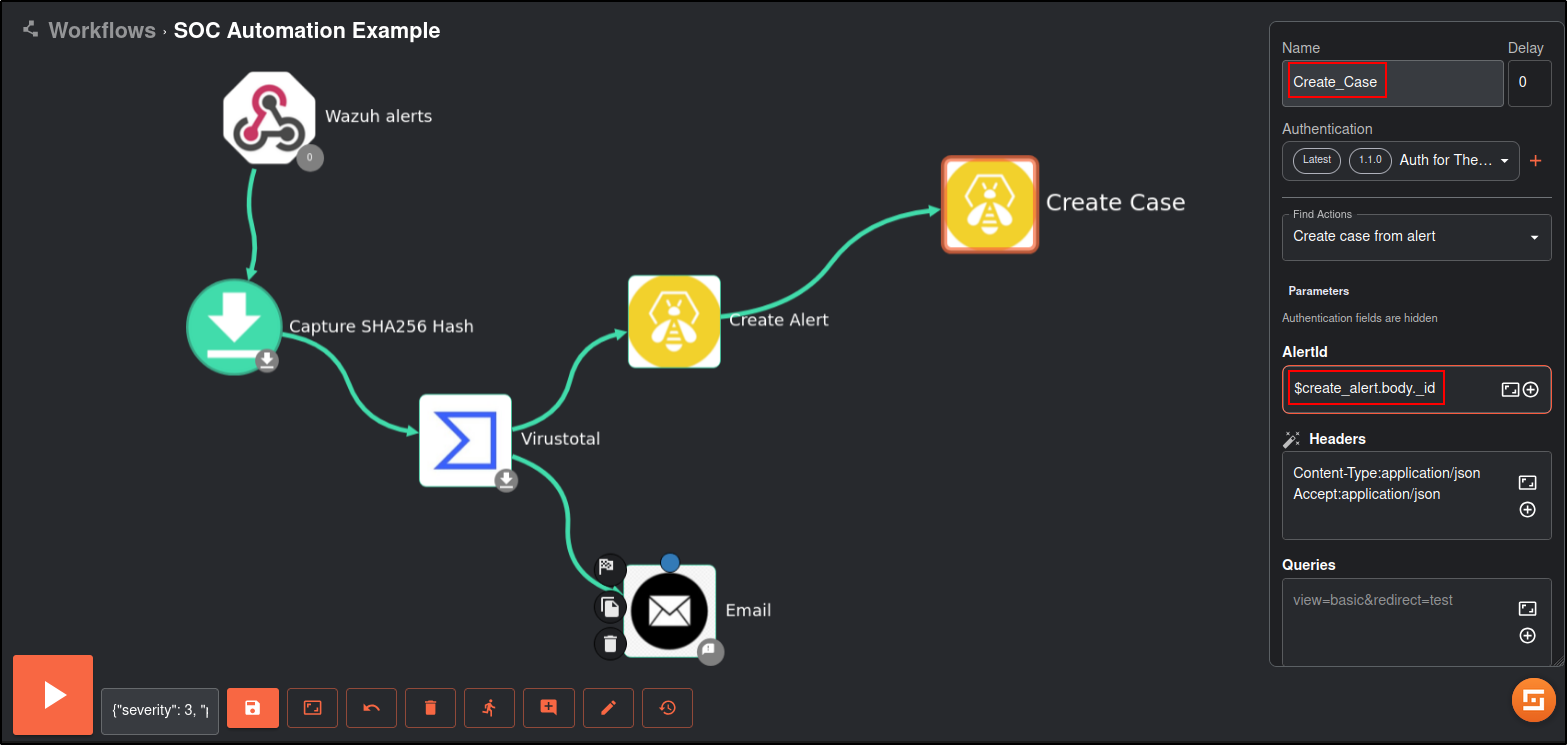

Duplicate TheHive app in the workflow.

Edit the TheHive app with following details:

Note: the values in brackets indicate the metadata from Create_Alert. Add the data by clicking the + icon.

Name Create_Case

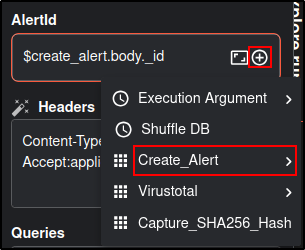

Alertid (body id)



Save and rerun the workflow. You may need to delete existing alert in TheHive.

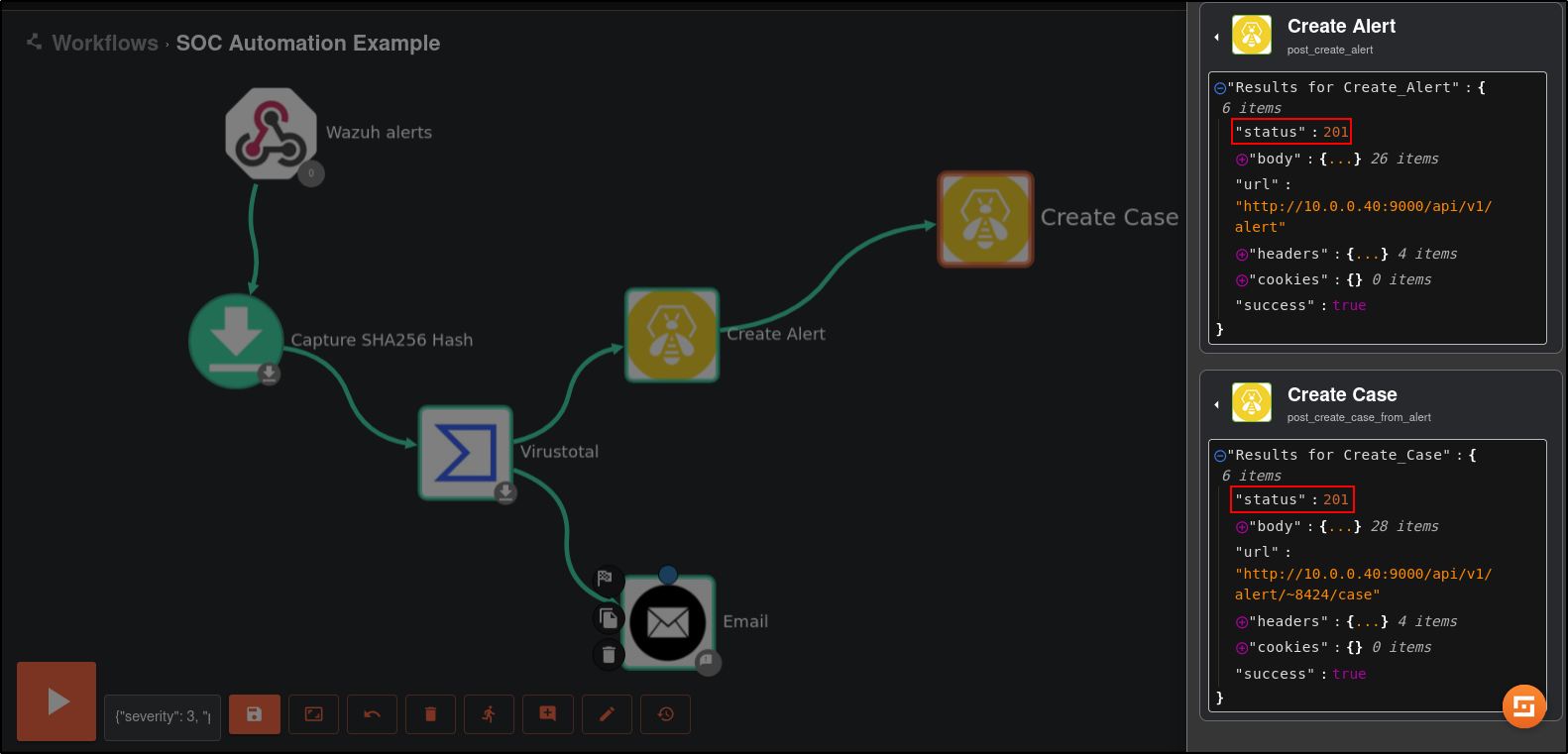

Verify that results return status code 201.

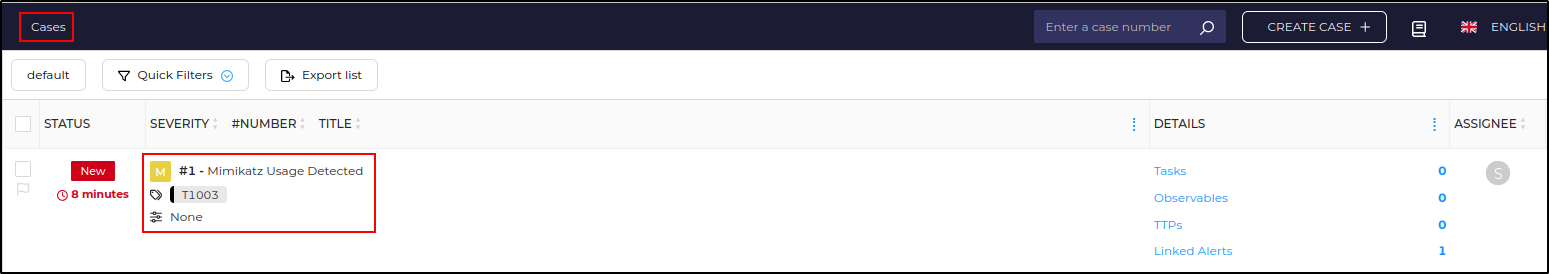

Verify that the case has been created in TheHive.
